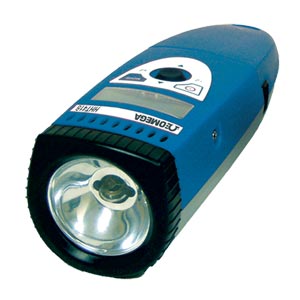

Portable Digital Industrial Stroboscope
HHT41B
1 year warranty CE

Portable Digital Industrial Stroboscope
HHT41B:Portable Digital Industrial Stroboscope
Click for larger image.

¥ 6,875.00  HHT41B
• Removable, Rechargeable Battery Pack 100 to 230 Vac
• One-Handed Operation
• Lightweight, Pocket Size
• Flash Rates to 12,500 FPM
• Tachometer Mode
• Remote Triggering/Pulse Output
• Bright Xenon Lamp
• NIST-Traceable Certificate of Calibration

View related products - General Test and Measurement Instruments

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

OMEGA's HHT41B set the industrial standard for high-intensity, multifunction, ultra-compact, xenon stroboscopes. It features a removable, rechargeable battery pack. Stop-action and slowmotion inspections are made easy with the one-touch, joystick-type tuning button. Additional features include rapid x2 and ÷2 of current flash rate, tachometer mode with external trigger, and memory recall functions. The HHT41B can even be operated "hands-free" with our standard tripod mounting bushing.

SPECIFICATIONS
Display: 6-digit alphanumeric backlit LCD, 7.6 mm (0.3") digits
Light Power: 150 mJ/flash, 1100 LUX as bright as 10 W units
Flash Duration: 10 to 30 µs typical
Battery: Rechargeable battery pack (included) Nickel-Metal Hydride
Recharge Cycle: Fully recharges in 4 to 5 hours
Run Time: 100 minutes typical at 1800 fpm with fully charged batteries
Adjustment: 4-quadrant, pressure-sensitive joystick button adjusts flash rate, x2 and ÷2
Power: Removable 6V rechargeable battery pack with integral charge control electronics, included with all units
Weight: 0.63 kg (1.4 lb), including battery

Internal Mode
Flash Range: 100 to 12,500 fpm
Resolution: 0.1 FPM
Accuracy: ±0.5 FPM or ±0.01% of reading
Update Rate: Instantaneous

External Mode
Range and Display: 5 to 12,500 fpm
Update Rate: 1 second typical
fpm Accuracy: ±0.1 fpm or ±0.01 of reading
Trigger-to-Flash Delay: < 5 µs
External Input: 0 to 5V, 5 TTL compatible (+12 Vp max), 20 ìs min pulse width; positive edge triggered

Tachometer Mode
Range: 5 to 250,000 rpm
Accuracy: ± 0.01% or 0.1 rpm
Update Rate: 1 second typical
External Input: 0 to 5V TTL compatible (+12 Vp max) 20 ìs min pulse width; positive edge triggered
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HHT41B 2 Weeks   ¥6,875.00    Portable strobe, 100/230V charger, 1 rechargeable battery pack
 HHT41B-KIT 7 Weeks   ¥8,310.00    Portable strobe, 100/230V charger, rechargeable battery pack, 2 spare lamps, carrying case
 HHT41B-PAK 7 Weeks   ¥8,450.00    Portable strobe, 115V charger, 2 rechargeable battery packs, holster
 HHT41B-DKIT 2 Weeks   ¥11,290.00    Portable strobe, 100/230V charger, 2 rechargeable battery packs, holster, 2 spare lamps, latching carrying case
 Accessories
 HHT41B-BATT-BLUE 2 Weeks   ¥1,690.00    Extra rechargeable NiMH battery pack
 HHT41-HOLSTER 2 Weeks   ¥475.00    Holster with battery pack pouch
 HHT41B-LAMP 7 Weeks   ¥1,300.00    2 xenon replacement lamps
 HHT41-CC 7 Weeks   ¥1,105.00    Latching carrying case
 HHT41-POC 7 Weeks   ¥575.00    Pulse output cable, 1.8 m to 3 mm (6' to 1.8") mono plug to BNC connector (CA-4044-6- 1 .8" to BNC)
 HHT41-PIC 2 Weeks   ¥470.00    Pulse input cable, 1.8 m to 3 mm (6' to 1.8") stereo plug to BNC connector
 HHT32R-URC-BLUE 7 Weeks   ¥620.00    Battery recharger
† Price are shown in RMB.

 Note: OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARESM covers parts, labor and equivalent loaners.
  Ordering Example: (1) HHT41B-KIT Stroboscope with universal charger, 1 rechargeable battery pack, 2 spare lamps, NIST certificate and carrying case, ¥8,310.00,
