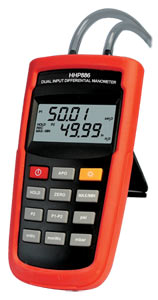

Omega's HHP886 Series
manometers feature a dual pressure
input (P1 and P2) and a dual display
which can be set to simultaneously
display P1 and P2 or P1 and the
differential pressure (P1 - P2).
Pressure is displayed in one of four
user selectable units and a record
function will store the MAX, MIN,
MAX-MIN and AVG pressure for
each channel for later viewing.
Models are also available with a
USB connection or wireless interface
for real time data logging to a
computer. Software allows the user
to display the data in a graphical
format or export the data to Excel or
text files for further manipulation.
SPECIFICATIONS Measurement Range and Resolution: psi: ±2.0000 mbar: ±150.00 inH2O: ±60.00 mmH2O: ±1500.0 Accuracy: ±1.5% FS @ 23 ±5°C, < 75% RH Operating Temperature: 0 to 50°C (32 to 122°F) Compatible Media: Clean, dry, non-corrosive gases Battery: 4 "AAA" (included) Battery Life: 200 hours (low battery indicator on display) Auto Power Off: When enabled by user unit will power off after 15 minutes with no buttons pressed Transmit Distance: 25 m (82') without magnetic interference Pressure Ports: Hose barbs for 4 mm ID flexible tubing (included) Dimensions: 177 H x 83 W x 40 mm D (7.0 x 3.3 x 1.6") Weight: 230 g (8.1 oz) (including batteries)
† Price are shown in RMB.
Note: Comes complete with two 1.5 m (5') lengths of tubing with 1/8 MNPT adaptors 4 "AAA" batteries, protective rubber boot and operator's manual. Ordering Example: (1) HHP886 Handheld dual input manometer, ¥1,785.00
