Handheld Smart Manometer for Differential, Gage and Absolute Pressure

HHP350 Series
1 year warranty CE

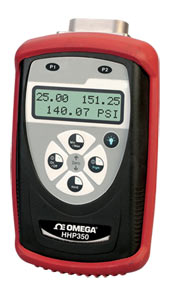

Smart Manometer, digital pressure manometer
HHP350 Series:Handheld Smart Manometer for Differential, Gage and Absolute Pressure
Click for larger image.


Please check out our newest handheld smart manometer with mobile data logging and USB, the HHP400.


Gage, Absolute or Differential Ranges Available
User Selectable Engineering Units
High Accuracy, ±0.05% FS Standard with ±0.025% Optional
MIN/MAX Hold and Leak Test Functions
Programmable Damping Rates, and Auto Shutoff

View related products - Instrumentation for Pressure and Strain Measurements

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The OMEGA™ HHP350 Series smart manometer brings high precision and value to handheld manometer users. Standard accuracy is ±0.05% FS, including temperature effects, with ±0.025% FS optional. Models are available for gage, absolute or differential pressure with available ranges from 58 mbar (28 inH2O) to 138 bar (2000 psi).
Additional features for the HHP350 Series include MIN/MAX capture, adjustable damping rates, and user selectable auto shut-off time period. It can also document up to 240 readings automatically or manually. Saved readings can be recalled at any time.

The HHP351 series is being permanently replaced by our HHP400 series. The HHP400 equivalent is for the old HHP351/2 or 360 model that you may have previously purchased



SPECIFICATIONS
Accuracy:
    HHP351: ±0.05% FS (except
    HHP351-A: ±0.1% FS)
    HHP352: ±0.025% FS
Storage Temperature: -5 to 50°C (23 to 122°F)
Operating Temperature: -40 to 60°C (-40 to 140°F)
Temperature Effects: No temperature effect over the entire operating range
Engineering Units: Inches of H2O [select 4°C, 20°C, 60°F], psi, mm of Hg, cm of Hg, inches of Hg, mBars, Bars, kPa, kg/cm2, and user selectable scaling
Proof Pressure: 2x range on gage and absolute units, 2x range on differential units when pressurized on high side only and 10.3 bar (150 psi) static when applied to both sides of the sensor simultaneously
Pressure Port: 1/8 NPT-F
Media Compatibility: Differential clean, dry non-corrosive gases only, gage or absolute models for fluids compatible with 316L SS
Battery: 4 "AA" batteries (included)
Battery Life: >100 hours continuous
Dimensions: 165 H x 91 W x 57 mm D (6.5 x 3.6 x 2.25")
Weight: 400 g (14 oz)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 High Accuracy Models (0.05%)
 DIFFERENTIAL PRESSURE
 HHP351-A    Consult sales   Handheld manometer with 0 to 28 inch of water differential pressure range and ±0.1% FS accuracy
 HHP351-B    Consult sales   Handheld manometer with 0 to 200 inch of water (7.2 psi) differential pressure range and ±0.05% FS accuracy
 HHP351-C    Consult sales   Handheld manometer with 0 to 2000 inch of water (72 psi) differential pressure range and ±0.05% FS accuracy
 HHP351-J    Consult sales   Handheld manometer with 0 to 10 inch of water (0.36 psi) differential pressure range and ±0.05% FS accuracy
 GAGE PRESSURE MODELS
 HHP351-D    Consult sales   Handheld manometer with 0 to 15 psi gage pressure range and ±0.05% FS accuracy
 HHP351-G    Consult sales   Handheld manometer with 0 to 300 psi gage pressure range and ±0.05% FS accuracy
 HHP351-L    Consult sales   Handheld manometer with 0 to 50 psi gage pressure range and ±0.05% FS accuracy
 HHP351-M    Consult sales   Handheld manometer with 0 to 100 psi gage pressure range and ±0.05% FS accuracy
 HHP351-N    Consult sales   Handheld manometer with 0 to 500 psi gage pressure range and ±0.05% FS accuracy
 ABSOLUTE PRESSURE MODELS
 HHP351-I    Consult sales   Handheld manometer with 0 to 2000 mmHg (0-38 psia) absolute pressure range and ±0.05% FS accuracy
 HHP351-Q    Consult sales   Handheld manometer with 0-17 psia absolute pressure range and ±0.05% FS accuracy
 HHP351-R    Consult sales   Handheld manometer with 0-100 psia absolute pressure range and ±0.05% FS accuracy
 COMPOUND PRESSURE RANGES
 HHP351-T    Consult sales   Handheld manometer with -15 to +30 psig (-1 to 2 bar) gage pressure range and ±0.05% FS accuracy
 HHP351-U    Consult sales   Handheld manometer with -15 to +50 psig (-1 to 3.4 bar) gage pressure range and ±0.05% FS accuracy
 Very High Accuracy Models (0.025%)
 DIFFERENTIAL PRESSURE
 HHP352-B    Consult sales   Handheld manometer with 0 to 200 inch of water (7.2 psi) differential pressure range and ±0.025% FS accuracy
 HHP352-C    Consult sales   Handheld manometer with 0 to 2000 inch of water (72 psi) differential pressure range and ±0.025% FS accuracy
 HHP352-K    Consult sales   Handheld manometer with 0 to 415 inch of water (15 psi) differential pressure range and ±0.025% FS accuracy
 GAGE PRESSURE
 HHP352-E    Consult sales   Handheld manometer with 0 to 30 psi gage pressure range and ±0.025% FS accuracy
 HHP352-M    Consult sales   Handheld manometer with 0 to 100 psi gage pressure range and ±0.025% FS accuracy
 HHP352-N    Consult sales   Handheld manometer with 0 to 500 psi gage pressure range and ±0.025% FS accuracy
 HHP352-P    Consult sales   Handheld manometer with 0 to 3000 psi gage pressure range and ±0.025% FS accuracy
 ABSOLUTE PRESSURE MODELS
 HHP352-I    Consult sales   Handheld manometer with 0 to 2000 mmHg (0-38 psia) absolute pressure range and ±0.025% FS accuracy
 HHP352-Q    Consult sales   Handheld manometer with 0-17 psia absolute pressure range and ±0.025% FS accuracy
 HHP352-R    Consult sales   Handheld manometer with 0-100 psia absolute pressure range and ±0.025% FS accuracy
 COMPOUND PRESSURE RANGES
 HHP352-W    Consult sales   Handheld manometer with -15 to +300 psig (-1 to 20.7 bar) gage pressure range and ±0.025% FS accuracy
Price are shown in RMB.

 Note: Comes complete with 4 "AA" batteries, protective rubber boot and operator's manual.
   Part Number Builder
(1) (2)
H
H
H
H
P
P
3
3
5
5
-
-
Qty:
Option Descriptions
(1) Accuracy Level
  Select
1 for High Accuracy
2 for Very High Accuracy
(2) Range
  Select
A for 0 to 28 inch of water differential pressure
B for 0 to 200 inch of water (7.2 psi) differential pressure
C for 0 to 2000 inch of water (72 psi) differential pressure
D for 0 to 15 psi gage pressure
E for 0 to 30 psi gage pressure
G for 0 to 300 psi gage pressure
I for 0 to 2000 mmHg (0-38 psia) absolute pressure
K for 0 to 415 inch of water (15 psi) differential pressure
L for 0 to 50 psi gage pressure
M for 0 to 100 psi gage pressure
N for 0 to 500 psi gage pressure
O for 0 to 1000 psi gage pressure
P for 0 to 3000 psi gage pressure
Q for 0-17 psia absolute pressure
R for 0-100 psia absolute pressure
S for 0-1000 psia absolute pressure
T for -15 to +30 psig (-1 to 2 bar) gage pressure
U for -15 to +50 psig (-1 to 3.4 bar) gage pressure
V for -15 to +100 psig (-1 to 6.9 bar) gage pressure
W for -15 to +300 psig (-1 to 20.7 bar) gage pressure
X for -15 to +500 psig (-1 to 34.5 bar) gage pressure
Y for -15 to +1000 psig (-1 to 69 bar) gage pressure
Z for -15 to +3000 psig (-1 to 207 bar) gage pressure
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
