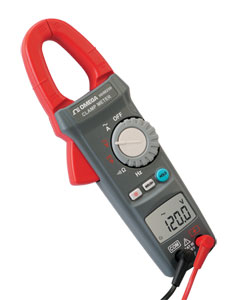

The HHM250 is a clamp on
multifunction meter that provides
high accuracy and reliability in a low
cost portable package. The clamp
allows for measurement of AC
current to 660 amps and AC voltage
to 600 volts. Ideal for monitoring
electrical power sources to
troubleshoot or evaluate. Measures
RMS voltage and current frequency
with precision accuracy.
SPECIFICATIONS Numerical Display: 4-digit liquid crystal (LCD), maximum reading 6600 Low Battery Indication: Battery image display Sampling Rate: 3x/second Power Source: Two 1.5V "AAA" batteries (included) Auto Power Off: 15 minutes Operating Temperature and Humidity: 0 to 40°C (32 to 104°F); <70% RH Storage Temperature and Humidity: -10 to 60°C (14 to 140°F); <80% RH Jaw Opening Diameter: Approx 25 mm (1") Dimensions: 209 H x 74 W x 36 mm D (8.2 x 2.9 x 1.4") Weight: Approx. 255 g (9.1 oz) Accessories (Included): Carrying case, two 1.5V "AAA" batteries, test leads and operator’s manual
† Price are shown in RMB.
Note: Comes complete with carrying case, two 1.5V "AAA" batteries, test leads and operator's manual.
