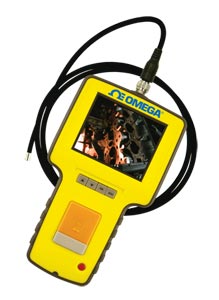

The HHB1500 borescope is a
portable, hand-held, complete
borescope system with monitor,
camera and video. Compact, palm
sized unit includes LED light source,
TFT (thin film transistor) display.
Camera, display that takes still
photos and dynamic video in real
time. Internal SD memory allows
whole videos to be saved and
outputted later. TV monitor and
computer USB output and data
logging function. Unit has multiple
viewing tips and extra wide view
angle capability. Multiple video
formats compatible with most
software including Windows® Media
Player. Rechargeable batteries can
record for 4 hours continuously.
SPECIFICATIONS Handle Working Temperature: -20 to 60°C (-4 to 140°F) Probe Working Temperature: -20 to 70°C (-4 to 158°F) Total Storage Temperature: -20 to 60°C (-4 to 140°F) While Battery in Charge Temp: 0 to 40°C (32 to 104°F) Dimensions: 221 L x 117 W x 38 mm H (8.7 x 4.6 x 1.5") Probe: 1 m (3.3') Weight: 32 oz (2 lb) with probe Insertion Tube and Light Source Specification Image Sensor: CMOS image sensor Resolution (Dynamic/Static): 320 H x 240V/640 H x 480V @ 30 M Tip Insertion Tube Diameter: 5.5 mm (0.22") Frame Rate: 30 fps S/N Ratio: 42 db Exposure: Automatic White Balance: Fixed Field of View (FOV): 67° Depth of Field (DOF): 1.5 to 10 cm Light Source: 4 white LED System Specification Power: 5 Vdc Display: 89 mm (3.5") TFT LCD monitor 320 x 240 pixels Interface: Mini USB 1.1/AV out/AV in Battery: Rechargeable li-polymer (3.7V) (included) Video Out Format: NTSC and PAL Recording Medium: SD card (capacity up to 2G) Compression Format: MPEG4 Still Image Storage Format: JPEG (640 x 480) Video Recording Format: ASF (320 x 240) Language: English
† Price are shown in RMB.
Note: Comes with USB cable, video cable, power supply, SD card, 1 m (3.3') probe, 3.7V rechargeable battery, 3 mirror attachments, hard carrying case and complete operator’s manual.
