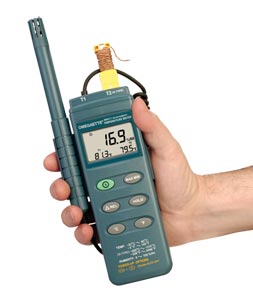

The HH311 is a low cost, high performance handheld meter. It offers a triple display to show the temperature and humidity from a handheld probe and can display data from a separate K type thermocouple connected via a standard SMP type miniature connector to the T2 input. The temperature/humidity probe uses a semiconductor and polymer capacitive sensor. An optional software package is offered to allow data to be read by a PC through the RS232 port.
SPECIFICATIONS Range: 0 to 100% RH, -20 to 60°C (-4 to 140°F) T2 Range: -200 to 1370°C (-328 to 2498°F) Resolution: 0.1 (except T2 for -200 > T2 > 200) Accuracy: ±2.5% RH at 25°C, ±0.7°C (±1.4°F) T2 Accuracy: ±[0.5% rdg ±1°C (2°F)] Humidity Response Time: 75 sec in slowly moving air T1 Response Time: 40 sec in slowly moving air Meter Dimensions: 186 H x 64 W x 30 mm D (7.3 x 2.5 x 1.2") Probe Dimensions: 190 x 15 mm (7.5 x 0.6"), cable stretches to 1.5 m (5') Operating Environment: 0 to 50°C (32 to 122°F), 0 to 90% non-condensing Storage Environment: -10 to 60°C (14 to 140°F), 0 to 80% non-condensing Power Requirements: One 9V battery (included), AC adapter 9 Vdc 10 mA min Plug Diameter: 3.5 x 1.35 mm RS232: 9600 bps, N, 8, 1 serial interface Battery Life: Approx 100 hours with alkaline battery Weight: Approx 320 g (11.3 oz)
† Price are shown in RMB.
Note: Includes meter, carrying case. 2 type K T/C's, battery and opertors manual. Software package is optional. Ordering Example: (1) HH311 2 channel RH/type K thermometer, ¥2,750.00
