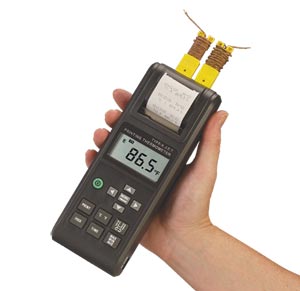

OMEGA’s compact and affordable
HH1304P is ideal for applications
requiring display and printing of
temperature measurements. Dual
input features min/max, hi/lo audible
alarms (with externally powered
alarm driver signals) and differential
measurements. This 2-channel unit
accepts Type J, K, T or E
thermocouple inputs, has a high
accuracy and 0.1° resolution. A
built-in thermal printer makes hard
copies of the temperature
measurements, which can be taken
at selected intervals. Parameters
printed are time, date, temperature,
and channel number. Battery
powered or optional AC adaptor.
SPECIFICATIONS Environment Conditions: Altitude up to 2000 m (6562') indoor use only Relatively Humidity: 90% max Operation Temperature: 0 to 50°C (32 to 122°F) Display:4½ digit LCD Sampling Rate: 1 reading per second Power Requirement: Six 1.5V "AAA" alkaline batteries (included) or optional 9 AC adaptor, (9 Vdc, 500 mA minimum) Battery Life (Typical): Approx 30 hrs (interval printing = 60 minutes, excluding beeper) 70 hours (without printing and beeper) Input Protection: 60 Vdc/24Vrtns
Operating Temperature and Humidity: 0 to 50°C (32 to 122°F) below 90% RH Storage Temperature and Humidity: -10 to 60°C (14 to 140°F) below 70% RH Dimensions: 193 L x 74 W x 37 mm H (7.60 x 2.91 x 1.46") Weight: Approx 365 g (13 oz) with batteries and thermo-paper Printer: Thermo-printing type with 16 characters per line using 38 mm width plain thermal paper
Accuracy at 23°C, Below 80% RH: Type K: ±(0.01% rdg + 0.5°C) 0~982°C; ±(0.05% rdg + 0.5°C) 982~1333°C; ±(0.01% rdg + 0.9°F) 32~1800°F; ±(0.05% rdg + 0.9°F) 1800~2431°F Type J: ±(0.01% rdg + 0.5°C) 0~760°C; ±(0.01% rdg + 0.9°F) 32~1400°F Type E: ±(0.01% rdg + 0.5°C) 0~703°C; ±(0.01% rdg + 0.9°F) 32~1297°F Type T: ±(0.01% rdg + 0.5°C) 0~400°C; ±(0.01% rdg + 0.9°F) 32~752°F Type K/J/E/T: ±(0.5% rdg + 0.7°C) -200~0°C; ±(0.5% rdg + 1.4°F) -328~32°F Type K/J/E/T: ±(0.5% rdg + 1.0°C)-200~0°C/ -328~32°C Resolution: 0.1°C/0.1°F Measurement Range: Type K: -200~1333°C (-328~2431°F) Type J: -200~760°C (-328~1400°F) Type E: -200~703°C (-328~1297°F) Type T: -200~400°C (-328~752°F)
† Price are shown in RMB.
Note: Comes complete with 2 beaded wire Type K thermocouples (1 per input), alarm output cable, carry case, 6 "AAA" alkaline batteries, two rolls of thermal paper and operator's manual.
