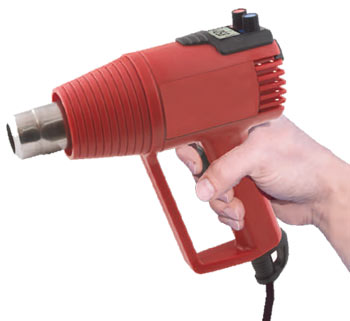

Heat Guns with Digital LCD
HG Series
1 year warranty

Heat Guns with Digital LCD
HG Series:Heat Guns with Digital LCD
Click for larger image.

¥ 3,900.00  HG-1400
• Compact, Light Weight, Easy-to-Use
• Six Programmable Settings With Digital Display of Temperature and Air Flow
• Programmable Heat and Air Flow
• Adjustable Temperature in 10° Increments From 50 to 540°C (130 to 1000°F) in °F or °C
• Adjustable Air Flow From 4 to 16 CFM (113 to 453 L/Min)
• Ergonomic Handle Provides Balanced Grip
• Temperature and Air Flow Lock-In-Feature Provides Added Management Control
• Power-Interrupt Reset Safety Feature Prevents an Unattended Heat Gun From Resuming Heat After a Power Failure

View related products - Process Air and Duct Heaters

Click to scroll below to order See Specs PDF View a printer friendly page

APPLICATIONS
  • Heat or Dry Temperature Sensitive Materials
  • Shrink Tubing
  • Shrink Packaging and Specialty Connectors
  • Solder and Desolder
  • Bend Plastics
  • Activate Adhesives
  • Remove Decals
  • Defrost Frozen Pipes and More
Rugged, ergonomic heat guns with digital display of temperature and air flow. Adjustable heat in 10° increments from 50 to 540°C (130 to 1000°F), and adjustable air flow from 4 to 16 CFM provides fast, reliable, repeatable flameless heat.

Value added features include lockable temperature and air flow controls, power interrupt safety reset, Fahrenheit or Celsius and balanced ergonomic design.

Programmable or dial-in settings. (See below for list of pre-programmed, dial-in settings.) Powerful, accurate, controllable heat and air flow to get the job done right. Electronic temperature control system maintains constant temperature when varying air flow or using attachments.

A broad range of optional attachments make the LCD Heat Guns ideal for a wide variety of applications including heating, shrinking, drying, soldering, desoldering, plastic welding and more.

SPECIFICATIONS
Voltage: 120V, 60 Hz, 11A
Output: 1300W maximum
Temperature: Variable 50 to 540°C (130 to 1000°F)
Air Flow Volume: 113 to 453 l/min (4 to 16 CFM)
Air Flow Velocity: 213 to 1219 m/min (737 to 4000 FPM)
Agency Approvals: UL and CUL
Nozzle Opening: 22.8 mm (0.88") diameter
Net Weight Gun: 726 g (1.6 lb)
Net Weight Kit: 2.75 kg (6 lb)
Cordset: 1.8 m (6'), 3-wire grounded
Motor: Permanent magnet
Dimensions: 208.3 L x 76.2 W x 185.4 mm H (8.2 x 3.0 x 7.3")

AUTOMATIC DIAL-IN SETTINGS INCLUDED
Preset Program Temp °F Temp °C Air Flow CFM Heat Gun Application
1 250 120 8 Applying specialty composites
2 450 230 12 Shrinking tubing
3 650 340 14 De-soldering circuit boards
4 850 450 16 Bending and forming plastics
5 1000 540 12 Soldering
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 HG-1400 5 Weeks   ¥3,900.00    LCD dial-in heat gun, 120V
 HG-1400-B    Consult sales   LCD dial-in heat gun with bench stand and specialty attachment
 HG-1400-KIT 5 Weeks   ¥4,925.00    LCD dial-in heat gun kit includes: 3 1/2" spreader attachment, 1 3/8" heat shrink attachment, 1/2" specialty connector attachment, 9/16" and 5/16" reducer attachments and durable storage/carrying case
 HG-1500 5 Weeks   ¥4,505.00    LCD programmable heat gun, 120V
 HG-1500-KIT 5 Weeks   ¥4,315.00    LCD heat gun kit includes: 3 1/2" spreader attachment, 1 3/8" heat shrink attachment, 1/2" specialty connector attachment, 9/16" and 5/16" reducer attachments and durable storage/carrying case
 Accessories
 HG-35026-NS 5 Weeks   ¥143.00    Nozzle shield, prevents nozzle contact
 HG-35216-STAND 5 Weeks   ¥155.00    Bench Stand
 HG-35351-SC 5 Weeks   ¥368.00    Storage case
 HG-35016-SA 5 Weeks   ¥155.00    3 1/2" spreader attachment
 HG-35017-SHA 5 Weeks   ¥155.00    1 3/8" shrink tubing attachment
 HG-35292-SC 5 Weeks   ¥132.00    1/2" specialty connector attachment to terminate tubing and specialty connectors
 HG-35293-RA 5 Weeks   ¥132.00    9/16" reducer attachment to direct hot air source for soldering and welding PVC
 HG-35294-PA 5 Weeks   ¥155.00    5/16" pinpoint attachment to pinpoint hot air source for soldering and welding PVC
 HG-35309-KIT 5 Weeks   ¥555.00    Includes all 5 attachments: 3 1/2" spreader attachment, 1 3/8" heat shrink attachment, 1/2" specialty connector attachment, 9/16" and 5/16" reducer attachments
† Price are shown in RMB.

 Ordering Example: (1) HG-1500-KIT LCD programmable heat gun, 31/2, ¥4,315.00
