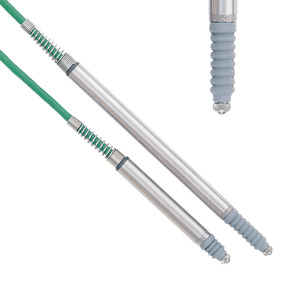

OMEGA's GP901 series digital gaging probes are a refinement of the LVDT, making use of a proven mechanical design and robust construction. In a digital gage probe, the coil forms part of a frequency-sensitive circuit. As the core moves, the inductance of the coil changes, causing a change in the frequency. By comparing frequencies, the user can determine the movement of the core. Each digital probe is calibrated on a laser interferometer in a controlled environment, giving improved linearity over the full stroke compared with LVDTs. Signal conditioning and an A/D converter are contained in an in-line probe electronics assembly. The electronics assembly provides a digital signal which is compatible with the DR601 display or the LDN232 RS-232 adaptor (see Related Products below).
SPECIFICATIONS Accuracy: GP901-1-X: ±0.24 microns ±K x 1.0 micron GP901-2-X: ±0.24 microns ±K x 1.0 micron GP901-5-X: ±0.64 microns ±K x 2.0 micron GP901-10-X: ±1.20 microns ±K x 2.0 micron
(K = the difference between component range and setting master) Operating Temp: Probe: 0 to 80°C (32 to 176°F) Electronics Assembly: 0 to 60°C (32 to 140°F) Storage Temp: 0 to 80°C (32 to 176°F) Calibration Temp: 20°C (68°F) Environmental Rating: IP65
† Price are shown in RMB.
Note: For compatible instruments please refer to the following models: DR601 and LDN232.
