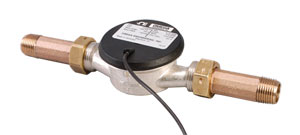

Economical Long-life Pulse Output Water Meters |
| FTB4605 FTB4607 |
|
 |
|
|
|
|
 |
Designed for long-term water billing applications, the FTB4600 series of flowmeters are highly accurate
and feature a high frequency pulse output suitable for remote flowrate indication or flow totalization.
For economy, they have no local indication of the flowrate or total. The pulse output is compatible with
OMEGA’s DPF400 and DPF700 series ratemeter/totalizers. All meters include built-in strainers, locking
nuts, gaskets, coupling pieces, and 1.5 m (5') of 3-conductor copper wire.
SPECIFICATIONS
Accuracy:
≥10% of cont. to max. flow: ±1.5% of rate
<10% of continuous flow: 2% of rate
Fluid Temperature Range: 0 to 88°C (32 to 190°F)
Wetted Parts: Nickle Plated Brass body, stainless steel, polyimide (fiberglass), polypropylene,
EPDM O-ring
Pressure Drop (at cont. flow rate): 2.9 psid
Max. Pressure: 150 psig
Pulse Output: Requires 6 to 16 Vdc @ 10 mA max. power; output requires pull-up to positive dc
voltage. Includes 1.5 m (5') of cable.
Duty Cycle: 50-50
| Model No. |
Flow Rate (GPM) |
Connection |
Lay Length
mm (in) |
Height
mm (in) |
Width
mm (in) |
Pressure
Drop (psi) |
Weight
kg (lb) |
K-Factor
pulses/Gal |
| Min |
Cont |
Max |
| FTB-4605 |
0.15 |
6.6 |
13.0 |
½ MNPT |
110 (4.3) |
70 (2.75) |
70 (2.75) |
2.9 |
0.5 (1.1) |
151.4 |
| FTB-4607 |
0.22 |
11.0 |
20.0 |
¾ MNPT |
130 (5.13) |
73 (2.9) |
70 (2.75) |
2.9 |
0.6 (1.4) |
75.7 |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with built-in strainers, locking nuts, gaskets, coupling pieces, 5’ (1.5 m) cable, and operator’s manual.
|
|
|
|
|
| |
|
