Liquid Turbine Flowmeters |
| FTB-1400 Series |
|
 |
|
|
|
|
 |

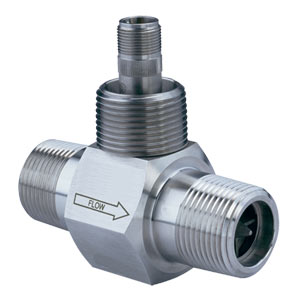

The FTB-1400 turbine flow meter is designed to meet the demands of the most rigorous
flow measurement applications. Originally developed for the secondary oil recovery market, the FTB-1400
is an ideal meter for liquid flow measurement on or off the oilfield. The meter features a 316 stainless
steel housing and rotor support, CD4MCU stainless steel rotor, and abrasion-resistant tungsten carbide
rotor shaft and journal bearings. These materials help the meter to maintain accuracy and mechanical
integrity when measuring the corrosive and abrasive fluids found in many industries.
Fluid entering the meter first passes through an inlet flow straightener that reduces its turbulent flow
pattern. Fluid then passes through the turbine, causing the turbine to rotate at a speed proportional to
fluid velocity. As each turbine blade passes through the magnetic field generated by the meter's magnetic
pick-up, an AC voltage pulse is generated. These pulses provide an output frequency that is proportional
to volumetric flow.
SPECIFICATIONS
Materials of Construction
Body: 316 stainless steel
Rotor: CD4MCU stainless steel
Rotor Support: 316 stainless steel
Rotor Shaft: Tungsten carbide
Turndown Ratio: 10:1
Flow Accuracy: ±1% of reading for 1" and larger meters
±1% of reading over the upper 70% of the measuring range for 1/2" meters
Repeatability: ±0.1%
Calibration: Water (5-Point NIST traceable calibration)
Pressure Rating: 5000 psi (maximum)
Turbine Temperature: -101 to 177°C (50 to 350°F); -101 to 232°C (-150 to 450°F)
with "–HT" option
End Connections: NPT; BSP optional
CABLE WITH CONNECTOR IS REQUIRED.
| Model No. |
Connection |
K-factor
Pulse/Gal |
Range |
Lay Length
mm (in) |
| LPM |
GPM |
Barrels/Day |
| FTB-1411 |
½ NPT |
18,000 |
2.3 to 11.3 |
0.6 to 3 |
20 to 100 |
76 (3) |
| FTB-1412 |
½ NPT |
13,000 |
2.8 to 28 |
0.75 to 7.5 |
25 to 250 |
76 (3) |
| FTB-1413 |
½ NPT |
3,300 |
7.6 to 56.7 |
2 to 15 |
68 to 515 |
76 (3) |
| FTB-1421 |
1 NPT |
18,000 |
2.3 to 11.3 |
0.6 to 3 |
20 to 100 |
76 (3) |
| FTB-1422 |
1 NPT |
13,000 |
2.8 to 28 |
0.75 to 7.5 |
25 to 250 |
76 (3) |
| FTB-1423 |
1 NPT |
3,300 |
7.6 to 56.7 |
2 to 15 |
68 to 515 |
76 (3) |
| FTB-1424 |
1 NPT |
3,100 |
11.3 to 113 |
3 to 30 |
100 to 1000 |
101 (4) |
| FTB-1425 |
1 NPT |
870 |
18.9 to 189 |
5 to 50 |
170 to 1700 |
101 (4) |
| FTB-1431 |
1½ NPT |
330 |
56.8 to 681 |
15 to 180 |
515 to 6000 |
152 (6) |
| FTB-1441 |
2 NPT |
330 |
56.8 to 681 |
15 to 180 |
515 to 6000 |
152 (6) |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with 5-point NIST calibration certificate for water and operator's manual.
Cables with connectors are sold separately. Cables with connectors are required.
High temperature magnetic pulse output (suffix "-HT") is not available on "-AMP" models. Cable for the "-HT" model is FTB-1400-HT-CABLE.
Amplified pulse output, suffix "-AMP" is not available on "-HT" models. Cable for the "-AMP" version is FTB-1400-AMP-Cable.
For units with BSPP threads, add suffix "-BSP" to model number, add $15 to price (not available on 2" models).
Repair kits contain: rotor and rotor shaft, upstream rotor support, retaining ring, thrust ball, bearing, and downstream rotor support.
** When purchased in combination with the FTB-1400-MD or FTB-1400-SD the FTB-1400-REDUCER is required.
Ordering Example: (1) FTB-1400-CABLE 3m (10') cable assembly with 2-pin straight connector and stripped leads, ¥870.00, plus (1) FTB-1411 1/2 NPT stainless turbine, ¥6,955.00, ¥870.00 + 6,955.00 = $7,825.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Model
|
| |
Select
11 for Stainless turbine 1/2 NPT connection - 18000 K-Factor Pul/Gal
12 for Stainless turbine 1/2 NPT connection - 13000 K-Factor Pul/Gal
13 for Stainless turbine 1/2 NPT connection - 3300 K-Factor Pul/Gal
21 for Stainless turbine 1 NPT connection - 18000 K-Factor Pul/Gal
22 for Stainless turbine 1 NPT connection - 13000 K-Factor Pul/Gal
23 for Stainless turbine 1 NPT connection - 3300 K-Factor Pul/Gal
24 for Stainless turbine 1 NPT connection - 3100 K-Factor Pul/Gal
25 for Stainless turbine 1 NPT connection - 870 K-Factor Pul/Gal
31 for Stainless turbine 1 1/2 NPT connection - 330 K-Factor Pul/Gal
41 for Stainless turbine 2 NPT connection - 330 K-Factor Pul/Gal
|
(2)
|
Options
|
| |
Select
Nothing(leave field blank) for None
-HT for High temp magnetic pulse output
-AMP for Amplified pulse output
-BSP for BSP threads (not available on 2" models)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
