2-way Air Operated Angle Seat Valves  - Discontinued

FSV-2100
1 year warranty CE

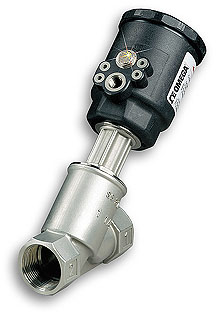

2-way Air Operated Angle Seat Valves
FSV-2100:2-way Air Operated Angle Seat Valves  - Discontinued
Click for larger image.

Ideal for All Neutral and Some Aggressive Fluids
Optical Position Indication Standard
Cost Effective High Cycle Life
316L Stainless Steel Body, PTFE Seal
Floating Seal and Self-Aligning Gland
For Water, Steam, Compressed Air, Natural Gas, Oil and Vacuum Service
Air Drying Equipment
Industrial Compressors
Sterilizers
Pollution Control Equipment
Autoclaves
Bottling, CIP, and Laundry Equipment
Textile Dyeing and Drying

View related products - Valves

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The FSV2100 series is being discontinued. Please see the AAV-1000 Series as a possible alternative or contact our Flow Engineering department.

The robust construction and 316L SS body and seat of the FSV2100 series air-operated angle seat valves allows their use in a wide range of industrial applications. This special construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, vacuum, and for applications demanding high purity where contamination cannot be tolerated. The valve stem has a self-aligning gland which, together with the floating seal assures maximum integrity. PTFE seal material is used as standard for maximum fluid compatibility.

SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 356°F)
Body Material: Stainless steel AISI 316L
Seal Material: PTFE
Pilot Media: Air, inert gases, water, max 60°C (140°F)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 FSV2105 2 Weeks   ¥2,985.00    1 1/2" Port Connection, 49.0 Flow Rate CV
 FSV2106 2 Weeks   ¥3,645.00    2" Port Connection, 60.1 Flow Rate CV
 Normally Open Valves
 FSV2101-NO 2 Weeks   ¥2,095.00    1/2" Port Connection, 4.9 Flow Rate CV, Normally Open
 FSV2106-NO    Consult sales   2" Port Connection, 60.1 Flow Rate CV, Normally Open
 Accessories
 FSV210PV    Consult sales   Solenoid pilot valve for mounting onto FSV2100 series valves, 0 to 150 psig source;
Price are shown in RMB.

 Note: Comes complete with operator’s manual.

*Maximum pressure with steam is limited to 150 psig.

For normally open operation, add suffix “-NO” to model number, add $38.00 to the price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
