Variable Speed Peristaltic Pump Kits: OMEGAFLEX™ Series
FPU420 Series
1 year warranty

FPU420 Series:Variable Speed Peristaltic Pump Kits: OMEGAFLEX™ Series

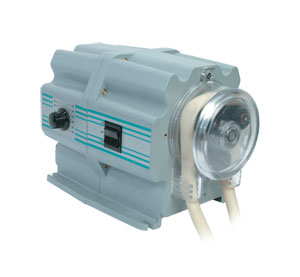

Click for larger image.

• Self-Priming, Non-Siphoning
• Metal or Plastic Benchtop Case
• Fluid Contacts Tubing Only
• Supplied with Tubing and Tube Unions
• 0.36 to 1600 mL/min Water Capacity

View related products - Pumps & Mixers

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The FPU420 Series OMEGAFLEX peristaltic pumps offer a variable speed drive system. Three models are available from 0.36 to 800 mL/min. Dual pumpheads can provide flows of up to 1600 mL/min. All models have the benefits of the OMEGAFLEX pump line, including non-siphoning, self-priming, contamination-free pumping. Each unit is supplied with a 1.8 m (6') long, 115 Vac power cord and is enclosed in a rugged polyurethane-painted steel benchtop case. Silicone or Norprene® precision-bore tubing [230 mm (9") length] with polyethylene tubing unions are included with each pump. Dual head models, with two separate outputs also available.

SPECIFICATIONS
(FPU420)
Dimensions: 156 W x 165 H x 146 mm D (61/8 x 61/2 x 53/4")
Shipping Weight: 2.7 kg (6 lb)
Power Draw: 0.5 A at 115 Vac
Max Pressure: 20 psi
(FPUVS4000)
Electrical: 115 Vac/60 Hz; CW/OFF/CCW switch; 1.8 m (6') power cord
Mounting: Thermofil plastic case; flanges
Dimensions: 157.5 W x 185.4 H x 261.6 mm D (6.2 x 7.3 x 10.3")
Shipping Weight: 3.1 kg (6.8 lb)
Tubing: 3/8 x 9/16" OD
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 FPU421    Consult sales   1.5 to 26 RPM (0.3 to 90 mL/min)
 FPU422    Consult sales   4.0 to 114 RPM (0.8 to 400 mL/min)
 FPU423    Consult sales   8.0 to 228 RPM (1.7 to 800 mL/min)
 Tubing 230mm (9' lengths)
 FPU116-N 2 Weeks   ¥196.00    Replacement Norprene tubing, 1/16' X 1/8'
 FPU116-S 6 Weeks   ¥200.00    Silicone tubing, 1/6' X 1/8'
 FPU14-N 2 Weeks   ¥196.00    Replacement Norprene tubing, 1/4' X 7/16'
 FPU14-S 2 Weeks   ¥196.00    Silicone tubing, 1/4' X 7/16'
 FPU18-N    Consult sales   Replacement Norprene tubing, 1/8' X 3/8'
 FPU18-S 2 Weeks   ¥200.00    Silicone tubing, 1/8' X 3/8'
 FPU316-N    Consult sales   Replacement Norprene tubing, 3/16' X 3/8'
 FPU316-S 2 Weeks   ¥200.00    Silicone tubing, 3/16' X 3/8'
† Price are shown in RMB.

 Note: FPU420 Series comes complete with 4 lengths of .22 m (9") (1/16", 1/8", 3/16", and 1/4") Norprene tubing, tubing unions, 2 rollers, mounting plate, 1.8 m (6') 115 Vac power cord, painted steel benchtop case, and operator's manual.

FPUVS4000 comes complete with norprene tubing, tubing unions, 1.8 m (6') 115 Vac power cord, and operator's manual.


Keywords:OMEGAFLEX™ Variable Speed Peristaltic Pumps, peristaltic pump
