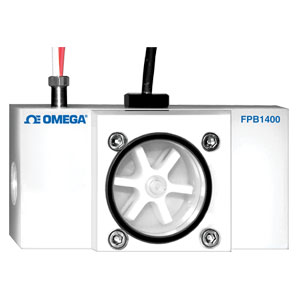

Fluid flowing through the FPB1400
causes the paddlewheel to spin. As
the magnets embedded in the
paddle spin past the sensor,
electrical pulses are produced in
which frequency is proportional to
the flow rate. The number of pulses
per desired time interval and the
K-factor (number of pulses/gallon)
make it is easy to calculate the flow
rate and volume passing through
the unit.
SPECIFICATIONS Accuracy: ±1% FS Max Temperature: 60°C (140°F) Max Pressure: 10 bar (150 psig) Power: 5 to 24 Vdc @ 2 mA Output Signal: NPN open collector (load 30 mA max) Body Dimensions: 56 H x 108 L x 53 mm D (2.2 x 4.25 x 2.2") Cable: Flow 1.8 m (6'), RTD 0.3 m (1') (-RTD models) RTD: Platinum 0.00385 TCR, meets EN 60751, Class B (-RTD models) Max Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes Viscosity: Calibrated 1 cSt, up to 50 cSt with field calibration Response Time: At 1 sec 10 to 90% of full scale, at 2 sec below 10% of full scale Wetted Materials Polypropylene Models Body: Polypropylene LID: Acrylic Paddlewheel: PVDF Shaft: Nickel tungsten carbide Bearings: Sapphire jewels O-Rings: EPDM RTD: 316 SS casing PVDF Models Body: PVDF LID: PVDF Paddlewheel: PVDF Shaft: Zirconia ceramic Bearings: Sapphire jewels O-Rings: PTFE RTD: 316 SS casing (-RTD models)
