Paddlewheel Flow Sensor |
| FPB100 Series |
|
 |
|
|
Paddlewheel Flow Sensor | Flow Sensors
 |
| Click for larger image. |
|
|
|
|
|
|
 |

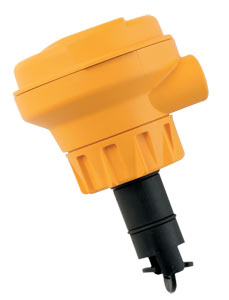

The OMEGA™ FPB100 Series flow sensor is the next generation in fluid measurement technology.
This new sensor is an improvement on what is already an industry standard. It has the added
functionality of various output options including flow switch, multi-functional pulse divider or
4 to 20 mA. Additionally, it offers low flow, low power and high resolution and can be configured
onsite directly through the built-in user interface. Installation is simple because the OMEGA FPB100
Series utilizes the same fittings as the popular OMEGA FP5000 and FP8500 Series paddlewheel
sensors and fits into pipe sizes ranging from DN15 to DN200 (0.5 to 8"). Available in polypropylene
and PVDF, it is ideal for a variety of applications including chemical processing, water and wastewater
monitoring and scrubber control.
SPECIFICATIONS
General
Input Frequency Range: 1 to 1000 Hz
Operating Range: 0.1 m/s to 6 m/s (0.3 ft/s to 20 ft/s)
Linearity: ±1% of max range at 25°C (77°F)
Repeatability: ±0.5% of max range at 25°C (77°F)
System Response: 100 ms update rate nominal
Wetted Materials
Sensor Body: Polypropylene or PVDF (depending on model)
O-Ring: FPM
Rotor Pin:
Titanium: Polypropylene models
PVDF: PVDF models
Rotor:
Black PVDF: Polypropylene models
Natural PVDF: PVDF models
Electrical
Pulse, Flow Switch
Dry-Contact Relay: 24 Vdc nominal (21.6 Vdc min to 26.4 Vdc max) 30 mA max current
Solid-State Relay: 5 to 24 Vdc nominal (5.0 Vdc min to 26.4 Vdc max) 30 mA max current
4 to 20 mA: 12 Vdc to 32 Vdc nominal (10.8 Vdc min to 35.2 Vdc max) 21 mA max current
Reverse Polarity and Short Circuit Protection: Up to 40V, 1 hour
Over-Voltage Protection: >40 Vdc over 1 hour
OUTPUT SPECIFICATIONS
Signal Averaging: Programmable 0 to 100 seconds
Sensitivity Response: Programmable 0 to 9 scale
PULSE DIVIDER/TOTAL PULSE OUTPUT
Pulse Divider Setting: 1.0000 to 99999
Maximum Pulse Rate: 300 Hz
Maximum Pulse Width: 50 ms
FLOW SWITCH OUTPUT
Relay Modes: Low, high
Time Delay: 0.0 to 6400.0 seconds
Hysteresis: Adjustable in engineering units
Relay Specifications
Mechanical SPDT: 5 A at 30 Vdc, 5 A @ 250 Vac
Solid-State Relay: 100 mA at 40 Vdc, 70 mA @ 33 Vac
Current Output (Passive 4 to 20 mA)
Loop Accuracy: ±32 µA (at 25°C at 24 Vdc)
Loop Resolution: 5 µA
Temp. Drift: ±1 µA per °C max
Power Supply Rejection: ±1 µA per V
Max Cable: 300 m (1000')
Maximum Loop Resistance: 600 Ω @ 24 Vdc 1kΩ @ 32 Vdc
Max Temperature/Pressure Rating
Storage Temperature: -10 to 75°C (14 to 167°F)
Operating Temperature: 0 to 65°C (32 to 149°F)
Relative Humidity: 0 to 90% RH, non-condensing
Flow Sensor
PP: 12.5 bar @ 20°C, 1.7 bar @ 85°C (180 psi @ 68°F, 25 psi @185°F)
PVDF: 14 bar @ 20°C, 1.7 bar @ 85°C (200 psi @ 68°F, 25 psi @ 185°F)
Operating Temperature:
PP: -18 to 85°C (0 to 185°F)
PVDF: -18 to 85°C (0 to 185°F)
Standards and Approvals: NEMA 4X (IP65) enclosure; CE approval
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual.
Installation fitting ordered seperately.
Ordering Example: (1) FPB111 Flow sensor with pulse divider output, ¥5,465.00, plus (1) PSU-93 24 Vdc power supply, ¥630.00, plus (1) TX4-100 Multi-conductor hook-up wire, ¥465.00, ¥5,465.00 + 630.00 + 465.00 = $6,560.00
|
|
|
|
|
| |
|
