Rugged, Reliable All-metal Sensors |
| FP-5200 and FP-3 |
|
 |
|
|
|
|
 |
ACCURACY THAT PAYS OFF
In the FP-5200 sensor housing, a magnet is surrounded by a coil, creating a magnetic field. As the liquid
flow causes the rotor to spin, each blade passing this coil concentrates the lines of magnetic force,
producing a repeatable AC sine wave output. The FP-5200 also features OMEGA’s patented "open-cell"
rotor, for increased linearity at ±1% over the full dynamic range of 1.6 to 20 fps, with
negligible head loss.
COMPATIBLE, VERSATILE INTERFACING
The FP-5200 is completely compatible with FPM Series powered flow indicators, controllers, and
totalizers, to give increased flexibility in system design. It also interfaces easily with digital
computers and with a variety of other external equipment.

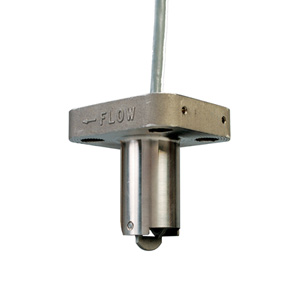

FP-5200 FLOW SENSOR
When you're looking for the added strength of an all-metal flow sensor, make it the FP-5200. It permits
the high degree of accuracy and reliability you demand, without added cost. Compare it to traditional
metal flowmeters, where the price increases dramatically with pipe size. In contrast, you can install
the FP-5200 insertion flow sensor in pipe sizes ranging from ½ to 12" without a lot of additional
cost, because the sensor price increases only slightly for larger pipe sizes. Furthermore, it's accurate
to ±1% of full scale. Installation is easy. Use the FP-5200 locally, or in a remote area up to
100 feet from the meter or controller without signal amplification. It needs no external power or
battery. Just one operator, simple tools, an FP-5200 Flow Sensor, a few minutes . . . and you're
on-line. Additionally, the all-stainless-steel flow sensor accurately measures a wide variety of fluids,
even under high pressure and temperature conditions [pressures up to 1500 psi, temperatures up to
150°C (300°F)].
Flow Range
Pipe
Size |
½" |
¾" |
1" |
1¼" |
1½" |
2" |
2½" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
Range
(gpm) |
1.6
to
19 |
2.7
to
34 |
4.4
to
54 |
7.4
to
94 |
10.1
to
127 |
16.8
to
210 |
24
to
300 |
37
to
461 |
63
to
794 |
100
to
1247 |
144
to
1801 |
250
to
3119 |
393
to
4915 |
559
to
6977 |
SPECIFICATIONS
Output Signal: Sine wave
Output Frequency: 12 Hz per ft/sec, 80 mV peak-to-peak per fps nominal
Flow Rate Range: 1.6 fps to 20 fps
Output Amplitude: 5 to 8 mV/P-P/Hz
Source Impedance: 10 kΩ
Accuracy: ±0.2 fps
Linearity: ±1% of full range
Repeatability: ±0.5% of full range
Max Viscosity: 1 centipoise (water); up to 5 cp above 5 fps velocity
Materials: Rotor: CD4MCU SS; Rotor Housing: 316 SS; Rotor Shaft: Tungsten Carbide; Transducer Body: 347 SS; Top Flange: 316 SS; Cap 316 SS
Rotor Bearing: Fluoroloy B (PTFE-based fluoroplastic)
Cable Length: 7.5 m (25'), can be extended up to 30 m (100') with copper wire
Maximum % Solids: 10%, with particulate size not exceeding 5 mm cross section or length
Weight: 0.9 kg (2 lb)
METAL HOT-TAP FLOW SENSOR
The metal hot-tap sensor allows the user easy sensor
installation and removal without shutting down the
process stream. Compatible with Mueller drill
assemblies, this new hot-tap sensor can be quickly
installed into pipe sizes from 1½ to 24". This hot-tap
assembly is compatible with any 1½ NPT female pipe
fitting such as weldolets and saddles. Installation
fitting not supplied.
SPECIFICATIONS
Flow Range: 0.3 to 20 fps
Wetted Parts: 316 and CD4MCU stainless steel; FKM and PEEK
Power Input: 5 to 24 Vdc @ 10 mA max
Max. Pressure/Temperature: 82°C (180°F) up to 250 psig
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual.
Ordering Example: (1) FP-5200 1/2, ¥6,960.00, plus (1) FP-5205 1/2, ¥5,935.00, plus (1) TX4-100 100 Foot 4 Conductor Wire, ¥630.00, , ¥6,960.00 + 5,935.00 + 630.00 = $13,525.00
|
|
|
|
|
| |
|
