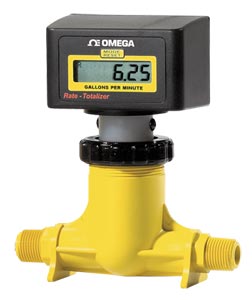

Digital Paddlewheel Meters |
| FP2000 Series |
|
 |
|
|
|
|
 |
The FP2000 Series is designed to measure the flow of a fluid in a pipe. The meter is factory calibrated
to any engineering units and displays the rate of flow, total or both (depending on the model selected)
on a 6-digit LCD display. Two “AAA” batteries power the unit for up to one year. There are three models
available: FP2000-R is a rate meter designed to measure and display the rate of flow; FP2000-T is a
totalizer meter designed to measure and display the total flow; FP2000-RT is a rate/totalizer meter
designed to measure and display both the rate of flow and the total flow.
Measuring accuracy requires a fully developed turbulent flow profile. Pulsating, swirling and other
disruptions in the flow stream will affect accuracy. Flow conditions with a Reynolds Number greater
than 4000 will result in a fully developed turbulent flow. A Reynolds Number less than 2000 is
laminar flow and may result in inaccurate readings.
Reynolds Number Equation:
Reynolds Number=(3160 x Q x G)/(D x V)
Where:
Q = Flow rate of the fluid in GPM
G = Specific gravity of the fluid
D = Pipe inside diameter in inches
V = Fluid viscocity in centepoise
Minimum Straight Pipe Length Requirements
| The meter’s accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the
flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The
distance required for accuracy will depend on the type of disturbance. |
| Disturbance Type |
Min
Inlet Pipe Length |
Min
Outlet Pipe Length |
| Flange |
10x pipe ID |
5x pipe ID |
| Reducer |
15x pipe ID |
5x pipe ID |
| 90° Elbow |
20x pipe ID |
5x pipe ID |
| Two Elbows-1 Direction |
25x pipe ID |
5x pipe ID |
| Two Elbows-2 Directions |
40x pipe ID |
5x pipe ID |
| Pump or Gate Valves |
50x pipe ID |
5x pipe ID |
|
SPECIFICATIONS
Max Working Pressure: 20 bar (300 psi) at 21°C (70°F)
Max Fluid Temperature: 93°C (200°F) at 0 psi
Max Ambient Temperature: -10 to 43°C (14 to 110°F)
Full Scale Accuracy: ±2%
Power Requirement: 2 "AAA" batteries (included)
Enclosure: NEMA 4X (IP56)
Maximum Pressure Drop: 0.6 BAR (8 psi) (varies per model)
Approximate Shipping Wt: 0.91 kg (2 lb)
Materials of Construction
Pipe Fitting: Polypropylene (FP2000 series) or PVDF (FP2100 series)
Sensor, Paddlewheel, Axle: PVDF
Sensor O-ring seals: FKM
Enclosure: ABS
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual and 2 "AAA" batteries.
For units factory programmed in liters, add suffix "-LITERS" to model number, no additional cost.
For a 5-point NIST Calibration, add suffix "-NIST" to the model number, add $320 to price.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Construction
|
| |
Select
0 for PP-Polypropylene
1 for PVDF
|
(2)
|
Range & Connection
|
| |
Select
01 for 0.4 to 4 GPM (3/8 MNPT)
02 for 0.8 to 8 GPM (3/8 MNPT)
03 for 0.5 to 5 GPM (1/2 MNPT)
04 for 2 to 20 GPM (1/2 MNPT)
05 for 0.8 to 8 GPM (3/4 MNPT)
06 for 3 to 30 GPM (3/4 MNPT)
07 for 2 to 20 GPM (1 MNPT)
08 for 5 to 50 GPM (1 MNPT)
09 for 4 to 40 GPM (1-1/2 MNPT)
10 for 6 to 60 GPM (1-1/2 MNPT)
11 for 10 to 100 GPM (1-1/2 MNPT)
12 for 4 to 40 GPM (2 MNPT)
13 for 6 to 60 GPM (2 MNPT)
14 for 10 to 100 GPM (2 MNPT)
15 for 20 to 200 GPM (2 MNPT)
|
(3)
|
Operation
|
| |
Select
R for Rate indicator
RT for Rate and Total indicator
T for Total flow indicator
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
