Programmable Mass Flow Meter and Totalizer |
| FMA-4100/4300 Series |
|
 |
|
|
PROGRAMMABLE MASS FLOW METER AND TOTALIZER
 |

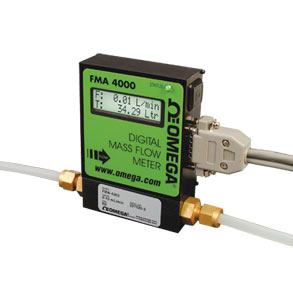

| Click for larger image. |
|
|
¥
8,600.00
FMA-4102
|
| • |
23 Selectable Engineering Units (Including User Defined)
|
| • |
Programmable Totalizer
|
| • |
High and Low Gas Flow Alarms
|
| • |
Two Sets Programmable SPDT Relays with Latching Feature
|
| • |
Selectable Analog 0 to 5 Vdc or 4 to 20 mA Outputs
|
| • |
Internal Conversion Factors for Up to 32 Gases
|
| • |
Digital Interface RS-232 Standard
|
| • |
Automatic Sensor Zero Offset Adjustment (Via Digital Interface or Local Push Button)
|
| • |
Self-Diagnostic Tests
|
| • |
Display Units Include Adjustable Back Lighting
|
View related products - Electronic Mass Flow Meters & Controllers
|
| |
|
|
|
 |
The FMA-4100/4300 Series flow
rate can be displayed in 23 different
volumetric flow or mass flow
engineering units including a user
specific selection. Flowmeters can
be programmed remotely via
RS232 or RS485 (optional).
FMA-4100/4300 flowmeters support
various functions including,
programmable flow totalizer, high
and low flow alarm, automatic zero
adjustment, 2 relay outputs, jumper
selectable 0 to 5 Vdc or 4 to 20 mA
analog outputs, status LED
diagnostic, storage of up to 10
different gas calibrations, internal
or user-specific K-factors. Display
models have local 2 lines x 16
characters LCD display with
adjustable back light provides flow,
total and diagnostic reading
simultaneously. The digital RS232
or RS485 (optional) interface
provides access to applicable
internal data including, flow, CPU
temperature, auto zero, totalizer
and alarms settings, gas table,
conversion factors and engineering
units selection, dynamic response
compensation and linearization
table adjustment. The analog
interface provides 0 to 5 Vdc or 4 to
20 mA (jumper selectable) outputs
for flow reading.
The FMA-4100/4300 supports
automatic sensor zero offset
adjustment which can be activated
locally via the maintenance push
button or remotely via digital
interface. The auto zero feature
necessitates a condition of absolutely
no flow through the meter during the
adjustment process. Provisions are
made to either start, read, or save
the current auto zero value via digital
commands. Digital totalizer
commands include: set to zero, start
at a preset flow, assign action to a
preset value, start/stop totalizing and
read. High and Low gas flow alarm
limits can also be preprogrammed
via digital interface. Alarm action can
be assigned with preset delay
interval (0 to 3600 seconds) to
activate the contact closer (separate
for high and low alarm). Latch mode
control feature allows each relay to
be latched on or follow the
corresponding alarm status.
FMA-4100/4300 Transducers should not be used for monitoring Oxygen gas unless specifically clean and prepared for such application. See below for ordering instructions.
SPECIFICATIONS
Calibrations: Performed at standard conditions [101.4 kPa (14.7 psia) and 21.1°C (70°F)] unless otherwise requested or stated
Environmental (PER IEC 664): Installation Level II; Pollution Degree II
Flow Accuracy (Including Linearity): ±1% of FS at calibration temperature and pressure
Repeatability: ±0.15% of full scale
Flow Temperature Coefficient: 0.15% of full scale/°C or better
Flow Pressure Coefficient: 0.01% of full scale/psi (6.895 kPa) or better
Turndown Ratio: 50:1
Flow Response Time: 600 ms time constant; approximately 2 seconds to within ±2% of set flow rate for 25 to 100% of full scale flow
Max Gas Pressure: 3447 kPa gauge (500 psig)
Max Pressure Drop: Max Flow &#LE; 10 SLM: 1.28 kPa (0.18 psi)
Max Flow < 10 SLM: 27.58 kPa (4 psi)
Gas and Ambient Temperature: 5 to 50°C (41 to 122°F)
Relative Gas Humidity: Up to 70%
Leak Integrity: 1 x 10-9 SCCS He max to the outside environment
Attitude Sensitivity: Deviation of up to 1% from stated accuracy, after re-zeroing
Output Signals: Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)
Relay: SPDT (30 Vdc, 1A)
Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise
Power Consumption: +12 Vdc (200 mA max); +24 Vdc (100 mA max); Circuit board has built-in polarity reversal protection, 300 mA resettable fuse provide power input protection
Wetted Materials:
Standard Aluminum Models: Anodized aluminum, brass, 316 stainless steel, FKM O-rings
Optional Stainless Steel Models: 316 stainless steel, FKM O-rings
Optional O-ring Materials: Buna, EPR (Ethylene Propylene), or perfluoroelastomer
Inlet and Outlet Connections:
Model FMA-4100/4300: Standard 6.35 mm (1/4") compression fittings for up to 50 SLM.
Standard 9.53mm (3/8") for models above 60 SLM
Optional: 3.18 or 9.53 mm (1/8" or 3/8") compression fittings
Display (FMA-4300 Models): Local 2 lines x 16 characters LCD with adjustable backlight (2-lines of text)
Calibration Options: Standard is one 10-point NIST traceable calibration. Optional, up to 9 additional calibrations may be ordered at additional charge. Contact OMEGA for additional information
CE Compliance: EMC compliance with 89/336/EEC as amended
Emission Standard: EN 55011:1991, Group 1
Class A Immunity Standard:
EN 55082-1:1992
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with software CD (operator's manual included on CD), 15-pin D pre-wired 1.8 m (6') cable, and NIST Certificate
Power supplies are sold separately. Power supplies also include cable.
Manual is on the software disc.
Calibrations done at ambient temperature (20°C/70°F) only.
For models with stainless steel body, add suffix "-ST" to model number, consult Flow Engineering for price.
To replace the RS232 communications with RS485, add suffix "-RS485" to model number, no additional cost.
For units with 1/8" compression fittings, add suffix "-1/8" to model number, no additional cost.
For units with 3/8" compression fittings, add suffix "-3/8" to model number, no additional cost.
For Oxygen cleaned units, add suffix "-O2CLEAN" to the model number; add $125 to price.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Display
|
| |
Select
1 for Without display
3 for With integral backlit display
|
(2)
|
Range
|
| |
Select
02 for 0 to 5 SCCM
03 for 0 to 10 SCCM
04 for 0 to 20 SCCM
05 for 0 to 50 SCCM
06 for 0 to 100 SCCM
07 for 0 to 200 SCCM
08 for 0 to 500 SCCM
09 for 0 to 1 SLM
10 for 0 to 2 SLM
11 for 0 to 5 SLM
12 for 0 to 10 SLM
13 for 0 to 20 SLM
14 for 0 to 30 SLM
15 for 0 to 40 SLM
16 for 0 to 50 SLM
17 for 0 to 60 SLM
18 for 0 to 80 SLM
19 for 0 to 100 SLM
|
(3)
|
Stainless Steel
|
| |
Select
Nothing(leave field blank) for None
ST for Stainless Steel
|
(4)
|
Compression Fittings
|
| |
Select
Nothing(leave field blank) for None
-1/8 for 1/8 inch
-3/8 for 3/8 inch
|
(5)
|
RS485
|
| |
Select
Nothing(leave field blank) for None
-RS485 for Communications with RS485
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
