Direct Read Acrylic
Variable Area Flow Meter Kits |
| FL-2500 |
|
 |
|
|
Direct Read Acrylic
Variable Area Flow Meter Kits
 |

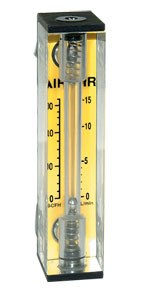

| Click for larger image. |
|
|
|
|
|
|
 |
The FL-2500 Series direct read variable area flow meter kits offer versatility at a
low cost. Each kit includes seven interchangeable direct read scales
for air, water, Argon, CO2, Helium, Nitrogen and Oxygen. These
economical kits are ideal for laboratories, schools or processes
that use multiple gases.
SPECIFICATIONS
Accuracy: ±5% of full scale reading
Maximum Temperature: 65°C (150°F)
Maximum Pressure: 6.9 bars (100 psig)
Meter Block: Clear machined acrylic
Float Materials: Black glass, stainless steel, tungsten carbide
O-Ring Seals: FKM with stainless fittings, Buna with brass fittings
Fittings: 1/8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)
Note: NIST calibration is not available on direct read meters.
Model No.
Brass Fittings |
Model No.
SS Fittings |
Air
SLM
(SCFH) |
Water
SCCM
(GPH) |
Argon
SLM
(SCFH) |
CO2
SLM
(SCFH) |
Helium
SLM
(SCFH) |
Nitrogen
SLM
(SCFH) |
Oxygen
SLM
(SCFH) |
Float |
| FL-2501 |
FL-2511 |
1.4 (2.8) |
20.0(0.3)) |
1.1 (2.25) |
1.1 (2.25) |
2.0 (4.0) |
1.3 (2.75) |
1.2 (2.5) |
Glass |
| FL-2502 |
FL-2512 |
2.75 (5.5) |
70 (1.1) |
2.2 (5.0) |
2.2 (5.0) |
5.5 (11.0) |
2.75 (5.5) |
2.5 (5.0) |
Stainless |
| FL-2503 |
FL-2513 |
3.5 (7.0) |
100 (1.5) |
3.0 (6.5) |
3.0 (6.5) |
8.0 (17) |
3.5 (7.5) |
3.5 (7.0) |
Carboloy |
| FL-2504 |
FL-2514 |
8.5 (18) |
175 (2.75) |
7.0 (15) |
7.0 (15) |
18 (40) |
8.0 (16) |
8.0 (16) |
Glass |
| FL-2505 |
FL-2515 |
16 (32.5) |
450 (6.5) |
13 (26) |
12 (25) |
35 (70) |
16 (32.5) |
15 (30) |
stainless |
| FL-2506 |
FL-2516 |
22 (45) |
700 (11) |
18 (37.5) |
18 (37.5) |
55 (110) |
22 (45) |
20 (42.5) |
Carboloy |
| FL-2507 |
FL-2517 |
50 (100) |
1400 (22) |
40 (80) |
35(80) |
110(250) |
45(100) |
45 (90) |
Stainless |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with all 7 interchangeable direct reading dual scales (air scale comes installed, six other scales included separately) and operator's manual.
Ordering Example: (1) FL-2515-V Acrylic Variable Area Flow Meter with valve and interchangeable scales for air, water, argon, CO2, helium, nitrogen and oxygen, ¥1,100.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Range (air/water)
|
| |
Select
01 for 1.2 SLM air/0.3 SCCM water
02 for 2.5 SLM air/70 SCCM water
03 for 3.5 SLM air/100 SCCM water
04 for 8.5 SLM air/175 SCCM water
05 for 16 SLM air/450 SCCM water
06 for 22 SLM air/700 SCCM water
|
(2)
|
Valve Option
|
| |
Select
Nothing(leave field blank) for standard unit (no valve)
-V for optional needle valve
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
