Duplex Insulated Thermocouple Wire
TT, KK, TG, GG Fine Wires

PFA, Fiberglass or Kapton insulation Thermocouple wire

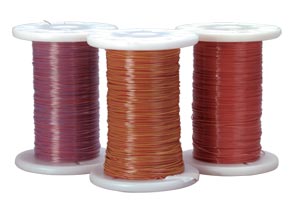

TT, KK, TG, GG Fine Wires:Duplex Insulated Thermocouple Wire
Click for larger image.

• 30, 36, and 40 Gage
• Convenient Spool Lengths 25, 50, 100, 200, 500, 1000 ft.
• ANSI Special Limits of Error and EN 60584-2 Tolerance Class 1 Rating Available on Most Models

View related products - Sensors and Transducers

Click to scroll below to order See Specs PDF View a printer friendly page

Insulation Code Insulation Range Insulation
Overall Conductors
TT PFA or Neoflon PFA or Neoflon -267 to 260°C
-450 to 500°F
KK Kapton® Kapton® -267 to 316°C
-450 to 600°F
TG Glass Braid PFA or Neoflon -73 to 260°C
-100 to 500°F
GG Glass Glass -73 to 482°C
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 GG-K-36-1000 2 Weeks   ¥6,715.00    1000 ft, Type K, 36 AWG Thermocouple Wire, Fiberglass Insulation rated to 480°C (900°F)
 TT-K-40-25 7 Weeks   ¥635.00    25 ft, Type K, 40 AWG Thermocouple Wire, PFA Insulation rated to 260°C (500°F)
 KK-K-30-500 10 Weeks   ¥6,285.00    500 ft, Type K, 30 AWG Thermocouple Wire, Kapton® Insulation rated to 316°C (600°F)
 GG-J-30-500 12 Weeks   ¥2,470.00    500 ft, Type J, 30 AWG Thermocouple Wire, Fiberglass Insulation rated to 480°C (900°F)
 TT-E-30-200 7 Weeks   ¥2,060.00    200 ft, Type E, 30 AWG Thermocouple Wire, PFA Insulation rated to 260°C (500°F)
 TT-T-36-100 2 Weeks   ¥1,765.00    100 ft, Type T, 36 AWG Thermocouple Wire, PFA Insulation rated to 260°C (500°F)
 GG-N-30-50 12 Weeks   ¥620.00    50 ft, Type N, 30 AWG Thermocouple Wire, Fiberglass Insulation rated to 480°C (900°F)
† Price are shown in RMB.

 Ordering Example: (1) TT-K-30-SLE-1000 1000' of Special Limits of Error PFA duplex insulated thermocouple wire., ¥8,255.00
   Part Number Builder
(1) (2) (3) (4) (5)
Qty:
Option Descriptions
(1) Insulation
  Select
TT for PFA Teflon or Neoflon
KK for Kapton
TG for Glass Braid
GG for Glass
(2) Calibration
  Select
-K for K Type Thermocouple
-T for T Type Thermocouple
-J for J Type Thermocouple
-E for E Type Thermocouple
-N for N Type Thermocouple
(3) AWG Number
  Select
-30 for 30 Gage
-36 for 36 Gage
-40 for 40 Gage
(4) Special Limits Error
  Select
Nothing(leave field blank) for Standard
-SLE for Special limits of error
(5) Length
  Select
-25 for 25' (7.5 Meters)
-50 for 50' (15 Meters)
-100 for 100' (30 Meters)
-200 for 200' (60 Meters)
-500 for 500' (150 Meters)
-1000 for 1000' (300 Meters)
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
