Non-Fraying, Braided, Glass Fibre Sleeving for High Temperature and Abrasive Applications |
| FBGS Series Fibreglass Sleeving |
|
 |
|
|
|
|
 |
Find how a Thermocouple wire works on this link.

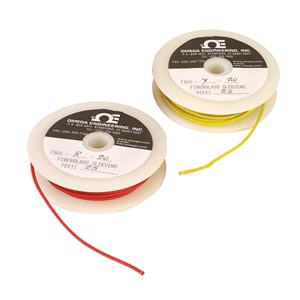

FBGS Series non-fray fibreglass
sleeving is a flexible, high
temperature primary or secondary
insulation made from closely braided,
continuous filament fibreglass which
has been heat-cleaned to remove
impurities in the yarn. Acrylic resin
binders are applied for colour coding
and to further retard fraying and to
hold sleeving round for cutting. This
fibreglass insulation is unaffected
indefinitely through a temperature
range from -60 to 316°C and withstands up to 616°C
for shorter periods. Colours
will be less vivid after exposure to
150°C.
FBGS Series fibreglass sleeving is
used for thermal and mechanical
protection in consumer, commercial
and industrial applications where
flexibility, abrasion resistance or
insulation is required and
particularly when temperature
extremes prohibit the use of
other materials.
|
|
|
|
|
|
† Price are shown in RMB.
Note: For non-standard lengths, please contact sales.
Ordering Example: (1) FBGS-R-20-25 Red fiberglass sleeving, 7.6m (25, ¥120.00, plus (1) FBGS-Y-24-50 Yellow fiberglass sleeving, 15.2m (50, ¥207.00, ¥120.00 + 207.00 = $327.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Colour
|
| |
Select
-B for Blue
-BK for Black
-R for Red
-N for Natural (Beige)
-Y for Yellow
-P for Purple
-BR for Brown
-GR for Green
|
(2)
|
Gauge
|
| |
Select
-20 for 20awg 0.81mm dia wire
-24 for 24awg 0.51mm dia wire
-26 for 26awg 0.41mm dia wire
-28 for 28awg 0.33mm dia wire
-30 for 30awg 0.25mm dia wire
|
(3)
|
Length
|
| |
Select
-25 for 25 foot (7.5 metre) reel
-50 for 50 foot (15 metre) reel
-100 for 100 foot (30 metre) reel
-200 for 200 foot ( 60 metre) reel
-500 for 500 foot (150 metre reel
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
