High Efficiency Oil and Particle Removal for compressed air systems
•
Replacable Air filter element for 0.01 µm partical removal.
•
Quick Release Bayonet Bowl
•
Standard Visual Service Life Indicator Turns from Green to Red When the Filter Element Needs to be Replaced
•
Optional Electrical Service Indicator Also Available
•
Modular Installations with Excelon 72, 73 and 74 Series Can be Made to Suit Particular Applications
The F72C series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

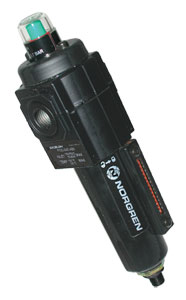

The F72C Coalescing Filters are designed for use as a
single in-line unit or as part of Norgren's Excelon® modular
compressed air preparation supply system. As a modular pneumatic component,
this oil removing filter can quickly be attached to air regulators, filters,
smooth start / exhaust valves, safety lockout valves and pipe adapters.
With our Quickclamp® and Quickclamp® wall bracket
accessories, a complete compressed air supply system can be
assembled and mounted in minutes.
The F72C oil removing coalescing air filter is a highly efficient oil
removing filter for compressed air systems. These filters come with a 0.01µm
partical filter and a visual service life indicator which turns from green to red
when the filter element needs to be replaced. Coalescing filters should be
used in conjunction with a 5µm general purpose filter upstream to
maximize filter element life and optimize performance.
Combination 5µm general purpose filter and coalescent filter
combination units are sold below for your convenience.
As a modular pneumatic component, this regulator can quickly be
attached to filters, oilers, smooth start / exhaust
valves, safety lockout valves and pipe adapters. With our
Quickclamp® and Quickclamp® and wall bracket
accessories, a complete compressed air supply system can
be assembled and mounted in minutes. SPECIFICATIONS Fluid: Compressed air
Maximum Pressure: Transparent Bowl: Manual or Semiautomatic Drain: 10 bar (150 psig)
Automatic Drain: 8 bar (116 psig)
Metal Bowl: Manual or Semiautomatic Drain: 17 bar (250 psig)
Automatic Drain: 8 bar (116 psig)
Operating Temperature*: Transparent Bowl: -34 to 50°C(-30 to 125°F)
Metal Bowl: -34 to 65°C(-30 to 150°F)
Particle Removal: 0.01 ìm
F72C MATERIALS Body: Zinc
Transparent Bowl: Polycarbonate
Guard for Transparent Bowl: Zinc
Metal: Zinc
Metal Bowl Liquid Level Indicator Lens: Transparent nylon
Element: Synthetic fiber and polyurethane foam
Elastomers: Neoprene and nitril
Service Life Indicator Materials- Body: Transparent nylon
Internal Parts: Acetal
Spring: Stainless steel
Elastomers: Nitrile
F73C and F74C MATERIALS Body: Aluminum
Transparent Bowl: Polycarbonate
Transparent with Guard: Polycarbonate, steel guard
Metal Bowl: Aluminum
Metal Bowl Liquid Level Indicator Lens: Transparent nylon
Element: Synthetic fiber and polyurethane foam
Elastomers: Neoprene and nitrile
Mechanical Service Indicator Materials Body: Transparent nylon
Internal parts: Acetal
Spring: Stainless steel
Elastomers: Nitrile
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F).
† Price are shown in RMB.
Note: Models listed include PTF threads, service indicator, automatic drain and a metal bowl with liquid level indicator. Maximum flow with 6.3 bar (90 psig) inlet pressure to maintain stated oil removal performance.
