DIGITAL PRESSURE GAUGE (DPG)
SANITARY, CLEAN-IN-PLACE MODELS |
| DPG409S Series |
|
 |
|
|

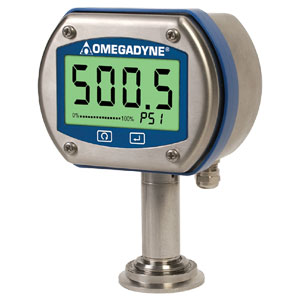

SANITARY/CLEAN-IN-PLACE DIGITAL PRESSURE GAUGE
 |
| Click for larger image. |
|
|
¥
12,915.00
DPG409S15-500G
|
| • |
Easy to Read 25 mm (1") Backlit LCD Display
|
| • |
High 0.08% Accuracy Typical
|
| • |
Hi and Lo Alarms Standard
|
| • |
MIN/MAX/AVG Reading
|
| • |
Analog Output: User selectable 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA (external 24 Vdc power supply required for all analog output types)
|
| • |
Data Logging and Charting Software Included
|
| • |
Wireless Transmitter Option Sends Reading to a Remote Location
|
| • |
Tested to Industrial CE Standards
|
| • |
Battery Powered with Long Battery Life
|
| • |
Analog Output Standard
|
| • |
Wireless Transmitter Optional
|
|
|
| |
|
|
|
 |
Omega’s DPG409S Sanitary/
CIP digital pressure gauges
incorporate a rugged 316 SS
enclosure designed for washdown
and marine applications with a
precision 0.08% accuracy pressure
transducer with 316L SS wetted
parts and body. The result is an
extremely durable digital pressure
gauge designed to survive harsh
industrial environments. The large
25 mm (1") display is easy to read
at a distance up to 11 m (35').
Models are available in Gauge,
Compound Gauge, Absolute,
Vacuum and Barometric pressure
ranges. Standard features include
a highly stable silicon sensor,
selectable MIN/MAX and AVG
readings, Hi and LO alarms and an
externally powered user selectable
analog output. An optional wireless
transmitter feature with software
allows the signal to be transmitted
to a remote location such as a PC
for charting and data logging. Power
is from an internal long life battery
(included) or an externally supplied
dc voltage source. Each unit is
supplied with configuration software
that allows the user to connect to a
PC via a standard USB connection
(cable included) and select a
variety of user configurable features
including update rate, units,
and backlight. The OMEGA DPG409S has been issued 3-A symbol authorization and meets the requirements of the 3-A Sanitary Standards.
SPECIFICATIONS
RoHS Compliant
CE Compliant: Meets industrial emissions and immunity standard IEC61326 for industrial locations
Accuracy: ±0.08% Best Straight Line Typ. (Linearity, Hysteresis and Repeatability combined)
Calibration: 5-Pt NIST traceable Calibration with zero and span values, Calibrated in horizontal direction (Compound Gage models calibrated in positive direction only).
Zero Balance: ±0.5% FS typical ±1% maximum (For ranges =2.5 psi ±1%
Typical ±2% maximum)
Span Setting: ±0.5% FS typical ±1% maximum (For ranges =2.5 psi ±1%
Typical ±2% maximum)
Storage/Operating Temperature Range:
Storage: -40 to 82°C (-40 to 180°F)
Operating: -18 to 66°C (0 to 150°F)
Compensated Temperature Range:
Ranges =5 psi: 4.4 to 60°C (40 to 140°F)
Ranges >5 psi: -4 to 85°C (25 to 150°F)
Thermal Effect (Over Compensated Range):
Zero and Span shift over Compensated Range
Ranges =2.5 psi: Zero: 1.00%
Span: 0.70%
Range = 5 psi: Zero: 0.80%
Span: 0.50%
Ranges > 5 psi: Zero: 0.50%
Span: 0.50%
26B & 26HB Barometric Range:
Zero: 0.90% Span: 0.50%
Minimum Isolation Between Case and Output Terminations:
100M O @ 50 Vdc
Analog Output: User selectable
0 to 5 Vdc, 0 to 10 Vdc of 4 to 20 mA
(external 24 Vdc power supply required
for all analog output types)
Note: Compound gage ranges have a
unidirectional analog output equal to their full
span; i.e. -15 to +15 psi = 0 to 10 Vdc.
Analog Output Cable: 2.7 m (8.9')
Analog Output Accuracy: 0.08% typical
Pressure Cycles: 250,000, minimum
Long Term Stability (1-Year): ±0.1% FS Typ.
Fill Fluid: NEOBEE M5 Food Grade
Approved to 3A Sanitary Specification
Environmental Protection:
NEMA 4X (IP65) depending upon
electrical termination
Pressure Rating: 1½ and 2" Tri-GripTM
Fitting (compatible with Tri-Clamp®):
600 psi using suitable clamp (600 psi on
1½" Tri-Clamp®) only)
Over Pressure: 4 x rated pressure to
maximum rated flange pressure
Secondary Containment: 6 x rated
pressure to a maximum of 2000 psi (not
in clamp)
Display: 4-digit LCD with user
selectable backlighting, (9999 count)
25 mm (1") character height
Computer Interface: UBS connection
for set-up, cable included
Sample/Display Rate: User selectable
from 0.25 to 10 sec. (preset to 1/sec)
Power: One 3.6V lithium 8.4 Ah
capacity (C cell) Included (Two included
with Wireless Option)
Battery Life (Typical): Up to 9 months
Enclosure Material: 316 Stainless
Steel and ABS center gasket
Enclosure Finish: Brushed 316 stainless steel
Enclosure Environmental Rating:
Weatherproof, NEMA 4X (IP65)
Connection Location: Lower (head
rotates to position display)
Front Panel Functions
Backlight: Manually turns backlight on/off
Min/Max: Recalls min/max values
Zero/Clear: Zeros display or clears min/max
Software Settings (via USB) Update Rate:
4 options, 10, 5, 2, 1 times per second
Units: psi, inHg, inH2O, bar,
mbar, hPa, units must be specified at time of order
Lock: Allows the lock-out of front panel functions
Alarms: User selectable “High” and
“Low” alarm limits. (Open Collector)
Analog Output: User Selectable
0 to 5 Vdc, 0 to 10 Vdc, or 4 to 20 mA
(requires external 24 Vdc power)
Backlight: On/Off, 10 sec, 30 sec, 1 min, 5 min
Wireless Transmitter (optional):
Channel Number, Transmission rate,
alarms, sensor offset, chart recording, data logging
Calibrate: Zero and Span
Overrange Indication: “_ _ _ _”
Wireless Option Sepcifications
Transmit Sample Rate: User
programmable from 1 sample/2 min to 1 sample/2 sec
Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz
RF Output: 10 dBm (10 mW)
Range of RF Link:
Outdoors (Line of Sight): Up to 120 m (400')
Indoors/Urban: Up to 40 m (130')
Included Software: Requires Windows® 7 (32 bit); XP, Vista
Internal Battery: Two 3.6V lithium
8.4 Ah capacity (C-cell) included
Data Transmission to Host: Pressure
reading, ambient temperature reading,
RF transmit strength and battery level
Dimensions:
Display: 115 D x 89 W x 74 mm H (4.5 x 3.5 x 2.9")
Sensor: 72 to 89 mm L (2.8 to 3.5") below display
Weight: 900 g (2 lb) Typical depending upon configuration
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual, set-up and configuration software, magnetic stylus, USB cable, 2.7 m (9') analog output cable with ferrite core, one 3.6V lithium C cell battery (two with wireless option) and 5-pt NIST traceable calibration. Wireless option also includes charting and databasing software.
Ordering Example: (1) DPG409S15-100G Digital gage with 1-1/2'' fitting, 0 to 100 psig, ¥13,940.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Sanitary Fitting
|
| |
Select
15 for 1.5 inches Tri-Grip
20 for 2 inch Tri-Grip
|
(2)
|
Range
|
| |
Select
-10WG for 0 to 10 inH2O Gauge
-001G for 0 to 1 Gauge
-2.5G for 0 to 2.5 Gauge
-005G for 0-5 Gauge
-015G for 0-15 Gauge
-030G for 0-30 Gauge
-050G for 0-50 Gauge
-100G for 0-100 Gauge
-150G for 0-150 Gauge
-250G for 0-250 Gauge
-500G for 0-500 Gauge
-600G for 0-600 Gauge
-005A for 0-5 Absolute
-015A for 0-15 Absolute
-030A for 0-30 Absolute
-050A for 0-50 Absolute
-100A for 0-100 Absolute
-150A for 0-150 Absolute
-250A for 0-250 Absolute
-500A for 0-500 Absolute
-600A for 0-600 Absolute
-10WV for 0 to 10 inH2O Vacuum
-001V for 0 to -1 Vacuum
-2.5V for 0 to -2.5 Vacuum
-005V for 0 to -5 Vacuum
-015V for 0 to -15 Vacuum
-10WCG for +/-10 inH2O Compound Gauge
-001CG for +/-1 Compound Gauge
-2.5CG for +/-2.5 Compound Gauge
-005CG for +/-5 Compound Gauge
-015CG for +/-15 Compound Gauge
-32B for 0 to 32inHg Barometric
-16B for 16 to 32inHg Barometric
-32HB for 0-1100 hPa Barometric
-16HB for 550-1100 hPa Barometric
-26HB for 880-1100 hPa Barometric
|
(3)
|
Wireless Option
|
| |
Select
for
-W for Wireless Option
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
