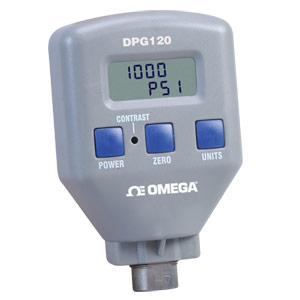

SPECIFICATIONS Accuracy: ±0.5% BFSL (includes non-linearity, hysteresis, repeatability) Pressure Range: DPG110: -14 to 100 psi DPG120: -14 to 1000 psi Units of Measure: psi, bar, kg/cm², atm Stability (1 Year): ±0.25% FS typical Overrange Protection: 2x rated pressure Burst Pressure: 5x or 20,000 psi, whichever is less Pressure Cycles: >100 million cycles Operating Temperature Range: 0 to 55°C (32 to 130°F) Compensated Temperature Range: 0 to 55°C (32 to 130°F) Storage Temperature Range: -40 to 65°C (-40 to 150°F) Temperature Compensation: Zero: <±1.5% FS Span: <±1.5% FS Pressure Sensor Connection: 1/8 FNPT Update Rate: 3 samples per second Wetted Parts: Stainless steel Power: 9 V alkaline battery (included) Auto Shut-Off: 1 hr Battery Life: 100 hr continuous operation Dimensions: 101 H x 63 W x 44 mm D (4 x 2.5 x 1.75") Weight: 0.16 kg (0.36 lbs)
† Price are shown in RMB.
Note: Comes with complete operator’s manual.
Keywords:Rugged Digital Pressure Gauges Selectable Pressure Units, gas flow measurement
