High Speed Load/Strain Meters and Process/Voltmeters, Dual Differential Inputs Available |
| DP7600 |
|
 |
|
|
|
|
|
¥
26,485.00

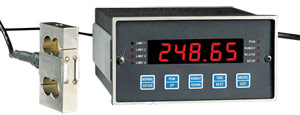

DP7600
|
| • |
5-Digit Display
|
| • |
Dual Inputs Available
|
| • |
All Programming and Calibrating Via 5 Front Panel Switches
|
| • |
Programmable Digital Filter, 1 to 500 Hz Cutoff
|
| • |
16-Bit A/D Converter (65000 Counts)
|
| • |
Tare (Zero) up to 50% of Span with Single Pushbutton
|
| • |
Peak Detect and Run Out Modes
|
| • |
115/230 Vac Power, Field Selectable
|
View related products - Instrumentation for Pressure and Strain Measurements
|
| |
|
|
|
 |
The DP7600 is a high speed load/strain meter. The unit performs 1000 conversions per second with limit checking and peak/runout tracking done at a user selectable rate (from 1 to 500 Hz). Peak and runout data can also be displayed using the front panel switches. A tare reading, up to 50% of span, can be entered with a single front panel push button.
The DP7700 is a high speed process/voltmeter with many of the same features. The DP7700 accepts most process inputs from 0-200 mV to 0-10 Vdc and 4-20 mA current loops. Transducer/loop power of ±15 Vdc @ 50 mA is standard.
Programming both meters is accomplished via five switches located on the front panel. The text at the top of the switch (NORMAL, PEAK, RUNOUT, TARE, ABS/REL) indicates its normal function. The text at the lower half of the switch (ENTER, UP, DOWN, NEXT, EXIT) indicates the switch’s function during setup and calibration.
SPECIFICATIONS
DP7600 Load/Strain Gage Meter
Excitation: +10 Vdc @ 50 mA, +5 Vdc @ 25 mA
Coarse Gain Setting: Selectable by switches on rear of unit Full Scale mV ranges: 5.1, 10.2, 15.3, 20.0, 26.3, 30.6, 35.1, 39.2
Bridge Resistance: 100 to 5000 Ohms. 4-wire or 6-wire configuration
DP7700 Process/Voltmeter
Excitation: ±15 Vdc, ±5 Vdc @ ±50 mA
Range/Input Impedance: 0-200 m Vdc 10 x 10e12 Ohms 0-5 Vdc 1 MOhms 0-10 Vdc 1 MOhms 4-20 mA 10 Ohms
Range Selection: Selectable by dip switch on rear of the unit
GENERAL SPECIFICATIONS
Accuracy: ± 0.01% of reading ± 1 count of A/D @ 25°C/77°F
Temperature Coefficient: 50 ppm/°C
Operating Temperature: -20 to 60°C (-4 to 140°F)
Display: -32768 to +32767 with programmable decimal points 0.56" (14mm) red LED
A/D Resolution : 16-bit
Input Bias Current: ±50 nA max ±100 pA/°C (per input channel)
Normal Mode Rejection:70 db
Rollover Error: ± 2 counts of A/D @ 25°C/77°F
Channels:One channel standard with second channel optional
Digital Filter: Programmable cutoff frequency 1 Hz to 500 Hz.
Display update: 3 times per second
Reading Rate: Limited to 1000 per second divided by number of channels
Input Analog Filter: 4 pole active antialias. 500 Hz cutoff on single channel unit and 250 Hz cutoff on dual channel unit
Power: 115/230 Vac selectable by switch on rear of unit DC Power (Optional): 10-30 Vdc @ 600 mA
Power Consumption: 8 Watts
Construction: Aluminum case
Dimensions: 69 H x 132 W x 175 mm D (2.7 H x 5.18 W x 6.9" D) (including I/O connector)
Panel Cutout: 63 H x 129 mm W (2.45 H X 5.06" W)
Weight: 370 g (13 oz)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: For units with multiple options consult Pressure Engineering for availability.
Ordering Example: (1) DP7600-A05 high speed load and strain indicator with 0-5 Vdc analog output, ¥12,640.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Input Type
|
| |
Select
DP7600 for strain gage bridge inputs
DP7700 for process voltage or current inputs
|
(2)
|
Option
|
| |
Select
for no option leave blank
-R for dual 2.5 A form "A" relays
-AMA for 4 to 20 mA analog output
-A05 for 0 to 5 Vdc analog output
-A10 for 0 to 10 Vdc analog output
-S2 for ASCII RS232 serial interface
-S4 for ASCII RS485 serial interface
-DUAL for Second input channel requires S2 or S4 option
-DC9/18 for 9 to 18 Vdc power @ 600 mA
-DC18/36 for 18 to 36 Vdc power @ 500 mA
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
