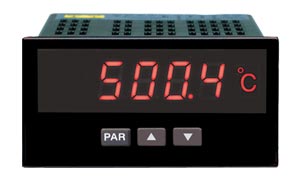

The DP63000-RTD meter accepts
standard RTD inputs and precisely
linearizes them into temperature
readings. A full 4-digit display
accommodates a wide range of
temperature inputs. State-of-the-art
digital circuitry virtually eliminates
errors due to drift. The meter
features a readout choice of either
Fahrenheit or Celsius with
0.1 or 1° resolution. Display prompts
and front panel buttons aid the
operator through set-up and
operation. Programmable digital
filtering enhances the stability of the
reading. All set-up data is stored in
E2PROM, which will hold data for a
minimum of 10 years without power.
The meter provides a peak “HI” and
valley “LO” reading memory with
selectable capture delay time. The
capture delay is used to prevent
detection of false peak or valley
readings that may occur during
start-up or unusual process events.
The peak and valley readings are
stored at power-down, allowing
process limits to be monitored over
any length of time. The meter has
several built-in diagnostic functions
to alert operators of any malfunction.
Extensive testing of noise
interference mechanisms and full
burn-in makes the meter extremely
reliable in industrial environments.
The front bezel meets NEMA 4X
(IP65) requirements for wash-down
applications.
