Weigh Scale Panel Meters - Discontinued |
| DP41-W |
|
 |
|
|
|
|
|
|
|
| • |
5 Point Linearization
|
| • |
Scales in Any Engineering Unit lb, kg, oz, etc....
|
| • |
Character Units of Measure Display
|
| • |
Min., Max. and Tare Functions
|
| • |
True 6-Wire Bridge Connection
|
| • |
Net/Gross Button
|
| • |
Zero Error Correction
|
| • |
Fixed Tare Capability
|
|
|
| |
|
|
|
 |
The DP41-W series are discontinued. Please see the new DP400S strain and weight meter as a possible upgrade or alternative or contact our Customer Engineering department for details.

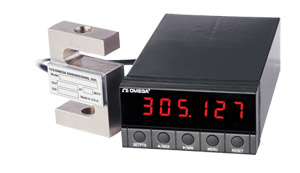

The DP41-W is a highly accurate, stable weigh meter with a NEMA-4, splash-proof key pad. The meter has adjustable filtering for achieving rock solid readings in critical applications. This powerful meter is all self-contained in a traditional 1 /8 DIN case design, and can be used as either a weigh meter, a normal two point scalable meter or a 5 point scalable meter. The 5 point scalable option lends itself to varying cross sections on liquid level tank measurements, for improving nonlinear sensor characteristics and a host of other applications. All of the DP41-W’s options are field installable.
SPECIFICATIONS
Accuracy: 0.005% Rdg
Input: ±50 mV, ± 500 mV, ± 5 V, ± 50 V, 100 mV, 1 V, 10 V, 100 V, 4-20 mA, 0-20 mA
Excitation: ac powered models: Adj 1.5-11 Vdc (5 Vdc @ 60 mA, 10 Vdc @ 30 mA or 24 Vdc @ 25 mA
dc powered models: Adj 1. 5-11 Vdc (5 Vdc @ 60 mA, 10 Vdc @ 120 mA or 24 Vdc @ 30 mA
NTEP Approvals: COC #92-152 C III & IIIL-10,000 divisions max
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Temp. Coefficient: 20 PPM/°C
Humidity: 95% @ 40°C, non condensing
Display: 6 digit, red LED, 0.56 in high
Display Range: -99999 to 999999
Connections: Input screw terminals; remote contact pin terminals
External Control Lines: Tare, reset tare, display hold
Outputs: 4 open collectors, 150 mA @ 1 V sink, 30 V max Step
Response: 36 ms for 63%, 145 ms for 98%, 218 ms for 99.8%
Filtering: Adj. to 13 Hz
POWER REQUIREMENTS
Voltage: 115 Vac @ 50-60 Hz (230 Vac optional)
Power Consumption: 10 watts max
MECHANICAL SPECIFICATIONS
Dimensions: 96 x 48 x 156 mm (3.78 W x 1.89 H x 6.13 in D)
Panel Cutout: 1 /8 DIN, 92 W x 45 mm H (3.62 W x 1.77 in H)
Weight: 570 g (1.27 lb)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
|
|
|
|
|
| |
|
