Advanced Digital Force Gauges |
| DFG55 Series |
|
 |
|
|
|
|
|
¥
13,935.00

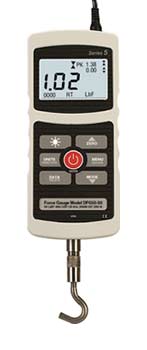

DFG55-10
|
| • |
High Speed 7000 Hz Sample Rate
|
| • |
5 Selectable Units of Measurement
|
| • |
USB, RS232, Mitutoyo, and Analog Outputs Standard
|
| • |
Large Backlit Graphic Display with Bar Graph
|
| • |
1000 Point Data Memory
|
| • |
Programmable Setpoints with Audible Alarms and Outputs
|
| • |
Peak Readings and Setpoints Always Displayed
|
| • |
Averaging Mode Calculates Average Reading Over Time
|
View related products - Load Cells, Force Sensors and Torque Transducers
|
| |
|
|
|
 |
OMEGA’s DFG55 advanced digital force gauges are designed for
tension and compression force testing in numerous applications
across virtually every industry. With capacities from 0.12 to 500 lb
(0.5 to 2500 N) the gauges feature an industry-leading sampling rate of
7000 Hz, producing accurate results even for quick-action tests.
Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000.
A large, backlit graphics LCD displays large, legible characters,
while the simple menu navigation allows for quick access to the
gauges’ many features and configurable parameters. Data can
be transferred to a PC or other data collector via USB, RS232, Mitutoyo
(Digimatic), or analog outputs.
On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with
indicators are ideal for pass-fail testing and for triggering external
devices such as an alarm, relay, or test stand. The gauges are overload
protected to 150% of capacity, and an analog load bar is shown on the
display for graphical representation of applied force.
The DFG55’s averaging mode addresses the need to record the
average force over time, useful in applications such as peel testing,
while external trigger mode makes switch activation testing simple and
accurate.
SPECIFICATIONS
Accuracy: ±0.1% of full scale ±1 digit
Power: AC or NiMH rechargeable battery (included)
Battery Life: Up to 7 hours continuous with back-light on; up to 24 hours with back-light off
Low Battery: Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Measurement Units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Safe Overload: 150% of full scale (display shows “OVLD” at 110% and above)
Full Scale Deflection: 0.25 mm (0.01") except DFG55-0.12, 0.13 mm (0.05")
Analog Output: ±1 Vdc, ±0.25% FS
USB/RS232 Output: Configurable up to 115,200 baud; includes Gauge Control Language 2 for full computer control
Setpoint Outputs: Three open drain lines
Dimensions: 149.4 H x 64.3 W x 33.6 mm D (5.88 x 2.53 x 1.32")
Weight: Ranges 100 lb or less 0.45 kg (1.0 lb), 200 lb and up, 0.54 kg (1.2 lb)
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with carrying case, AC adaptor with US plug, extension rod, cone, chisel, V-groove, flat, hook, coupling, certificate of calibration, USB cable and CD with USB drivers and operator’s manual. For AC adaptor with European plug add suffix "-E" to model number, UK style plug add "-U", no extra charge.
Ordering Example: (1) DFG55-20 20 lb digital force gauge with US style plug, ¥14,720.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Select Force Range
|
| |
Select
-0.12 for 0.12 lbF
-0.25 for 0.25 lbF
-0.5 for 0.5 lbF
-2 for 2 lbF
-5 for 5 lbF
-10 for 10 lbF
-20 for 20 lbF
-50 for 50 lbF
-100 for 100 lbF
-200 for 200 lbF
-500 for 500 lbF
|
(2)
|
Select AC Power Plug
|
| |
Select
Nothing(leave field blank) for US style plug (standard)
-E for European style plug
-U for UK style plug
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
