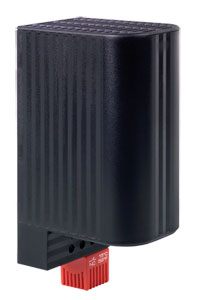

Touch-Safe Heater 50 to 150 W |
| CSF060 Series |
|
 |
|
|
|
|
 |
Touch-safe heater for the use in enclosures
with electrical/electronic components. The
design of the heater supports the natural
convection which results in a high aircurrent
of warm air. The surface
temperatures on the accessible side surfaces
of the housing are kept down as a result of
the heater design. This model with plug-in
thermostat does not require additional
wiring. The heaters are designed for
permanent operation. This heater is also
available in a version without thermostat
(CS 060).
SPECIFICATIONS
Operating Voltage: 120 to 240 Vac* (min 110V, max 265V)
Heating Capacity: See table
Heating Element: PTC resistor: temperature limiting
Surface Temperature: <80°C (176°F), except upper protective grille
Connection: 4-pole terminal 2.5 mm2, (0.10 in2) torque 0.8 Nm max
Casing: Plastic according to UL94 V-0, black
Mounting: Clip for 35 mm (1.4") DIN rail, EN 50022
Fitting Position: Vertical
Temperature
Operating: -40 to 70°C (-40 to 158°F)
Storage: -45 to 70°C (-49 to 158°F)
Protection Type/Protection Class: NEMA 2 (IP20)/II (double insulated)
Approvals: VDE
Note: Other voltages on request
* Operating with voltages below
140 Vac/Vdc reduces heating
performance by approximately 10%.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with operator’s manual.
|
|
|
|
|
| |
|
