Temperature Process Strain PID Controllers
 |

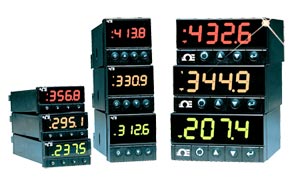

| Click for larger image. |
|
|
|
|
| • |
Universal Inputs
|
| • |
Accuracy at 25°C: 0.5°C (±0.9°F) temp nominal, 0.03% Rdg ±0.03% range process and strain
|
| • |
Totally Programmable Color Displays (Visual Alarms)
|
| • |
User-Friendly, Simple to Configure
|
| • |
Free Software
|
| • |
Full Autotune PID Control
|
| • |
Embedded Ethernet Connectivity Optional
|
| • |
RS232 and RS485 Serial Communications Optional
|
| • |
Built-In Excitation
|
| • |
2 Outputs: Control/Alarm or Retransmission of Process Value
|
| • |
Output 3: Isolated Analog Voltage and Current Optional
|
| • |
NEMA 4 (IP65) Front Bezel
|
| • |
Temperature Stability: ±0.04°C/°C RTD and ±0.05°C/°C Thermocouple @ 25°C (77°F)
|
| • |
Front Removable and Plug Connectors
|
| • |
AC or DC Powered Units
|
| • |
Ratiometric Mode for Strain Gages
|
| • |
Programmable Digital Filter
|
| • |
UL and cUL Certified
|
View related products - Thermistor Elements, Probes and Assemblies
|
| |
|
|
|
 |
*Move on up to our newest line of PID Controller, the CNPT Platinum Series controllers with Modbus connectivity, expanded ramp and soak programs, universal inputs, and simple PC programming.*
The OMEGA™ iSeries is a family of
microprocessor-based instruments
offered in three true DIN sizes with
NEMA 4 (IP65) rated front bezels.
All of the instruments share the same
set-up and configuration menu and
method of operation, a tremendous
time saver for integration of a large
system. The iSeries family includes
extremely accurate digital panel
meters "DPi" and single loop PID
controllers "CNi" that are simple to
configure and use, while providing
tremendous versatility and a wealth
of powerful features.
The CNi Series covers a broad
selection of transducer and
transmitter inputs with 2 input
models.
The universal temperature and
process instrument (CNi models)
handles 10 common types of
thermocouples, multiple RTDs and
several process (DC) voltage and
current ranges. This model also
features built-in excitation, 24 Vdc @
25 mA. With its wide choice of signal
inputs, this model is an excellent
choice for measuring or controlling
temperature with a thermocouple,
RTD, or 4 to 20 mA transmitter.
The strain and process instruments
(CNiS models) measure inputs from
load cells, pressure transducers,
and most any strain gage sensor as
well as process voltage and current
ranges. The CNiS has built-in
5 or 10 Vdc excitation for bridge
transducers, 5 Vdc @ 40 mA or
10 Vdc @ 60 mA (any excitation
voltage between 5 and 24 Vdc is
available by special order). This
CNiS model supports 4- and 6-wire
bridge communications, ratiometric
measurements. The CNiS features
fast and easy "in process" calibration/
scaling of the signal inputs to any
engineering units. This model also
features 10-point linearization which
allows the user to linearize the signal
input from extremely nonlinear
transducers of all kinds.
Programmable
Color Display
The iSeries are 1/8, 1/16 and 1/32 DIN
controllers featuring the big
iSeries color-changing display. The
digits are twice the size of typical
1/8 DIN panel meters. The iSeries
meters feature the only LED displays
that can be programmed to change
color between GREEN, AMBER, and RED.
Embedded Internet and Serial
Communications
Featuring optional
"embedded Internet" (specify "-EIT"
option) the iSeries are the first
instruments of their kind that connect
directly to an Ethernet network and
transmit data in standard TCP/
IP packets, or even serve Web
pages over a LAN or the Internet.
The iSeries are also available with
serial communications. With the
"-C24" option, the user can select
from the pushbutton menu between
RS232, RS422, and RS485, with
straightforward ASCII commands. If Modbus is required, we recommend our latest Platinum controllers - CNPT Series.
SPECIFICATIONS
Universal Temperature and Process Input (DPi/CNi Models)
Accuracy: Accuracy at 25°C: 0.5°C (±0.9°F) temp nominal, 0.03% Rdg ±0.03% range process and strain
Resolution: 1°/0.1° 10 µV process
Temperature Stability:
RTD: 0.04°C/°C
TC @ 25°C (77°F): 0.05°C/°C
Cold Junction Compensation
Process: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Display: 4-digit 9-segment LED 10.2 mm (0.40"); DPi/CNi32, DPi/CNi16, DPi/CNi16D, DPi/CNi8DV 21 mm (0.83"); DPi/CNi8 10.2 mm (0.40") and 21 mm (0.83"); DPi/CNi8DH RED, GREEN, and AMBER programmable colors for process variable, setpoint and temperature units
Input Types: Thermocouple, RTD, analog voltage, analog current
Thermocouple Lead Resistance: 100 Ω max
Thermocouple Types (ITS 90): J, K, T, E, R, S, B, C, N, L (J DIN)
RTD Input (ITS 68): 100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; 0.00385 or 0.00392 curve
Voltage Input: 0 to 100 mV, 0 to 1V, 0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV 1 MΩ for 1 or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Configuration: Single-ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection:
Temperature: None, 0.1
Process: None, 0.1, 0.01 or 0.001
Setpoint Adjustment: -1999 to 9999 counts
Span Adjustment: 0.001 to 9999 counts
Offset Adjustment: -1999 to 9999
Excitation (Not Included with
Communication): 24 Vdc @ 25 mA (not available for low-power option)
Universal Strain and Process Input (DPiS/CNiS Models)
Accuracy: 0.03% reading
Resolution: 10/1µV
Temperature Stability: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Input Types: Analog voltage and current
Voltage Input: 0 to 100 mVdc, -100 mVdc to 1 Vdc, 0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV; 1 MΩ for 1V or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Linearization Points: Up to 10
Configuration: Single-ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection: None, 0.1, 0.01 or 0.001
Setpoint Adjustment: -1999 to 9999 counts
Span Adjustment: 0.001 to 9999 counts
Offset Adjustment: -1999 to 9999
Excitation (Optional In Place Of Communication): 5 Vdc @ 40 mA; 10 Vdc @ 60 mA
Control
Action: Reverse (heat) or direct (cool)
Modes: Time and amplitude proportional control; selectable manual or auto PID, proportional, proportional with integral, proportional with derivative and anti-reset Windup, and on/off
Rate: 0 to 399.9 s
Reset: 0 to 3999 s
Cycle Time: 1 to 199 s; set to 0 for on/off
Gain: 0.5 to 100% of span; setpoints 1 or 2
Damping: 0000 to 0008
Soak: 00.00 to 99.59 (HH:MM), or OFF
Ramp to Setpoint:
00.00 to 99.59 (HH:MM), or OFF
Auto Tune: Operator initiated from front panel
Control Output 1 and 2
Relay: 250 Vac or 30 Vdc @ 3 A (resistive load); configurable for on/off, PID and ramp and soak
Output 1: SPDT, can be configured as alarm 1 output
Output 2: SPDT, can be configured as alarm 2 output
SSR: 20 to 265 Vac @ 0.05 to 0.5 A (resistive load); continuous
DC Pulse: Non-isolated; 10 Vdc @ 20 mA
Analog Output (Output 1 Only): Non-isolated, proportional 0 to 10 Vdc or 0 to 20 mA; 500 Ω max
Output 3 Retransmission
Isolated Analog Voltage and Current
Current: 10 V max @ 20 mA output
Voltage: 20 mA max for 0 to 10 V output
Network and Communications
Ethernet: Standards compliance IEEE 802.3 10 Base-T
Supported Protocols: TCP/IP, ARP
RS232/RS422/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 300 to 19.2 Kb; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status
RS485: Addressable from 0 to 199
Connection: Screw terminals
Alarm 1 and 2 (Programmable)
Type: Same as output 1 and 2
Operation: High/low, above/below, band, latch/unlatch, normally open/ normally closed and process/deviation; front panel configurations
Analog Output (Programmable): Non-isolated, retransmission 0 to 10 Vdc or 0 to 20 mA, 500 Ω max (output 1 only); accuracy is ±1% of FS when following conditions are satisfied: input is not scaled below 1% of input FS, analog output is not scaled below 3% of output FS
General
Power: 90 to 240 Vac ±10%, 50 to 400 Hz*, 110 to 375 Vdc, equivalent voltage
Low Voltage Power Option: 24 Vac**, 12 to 36 Vdc for DPi/CNi/DPiS/CNiS; 20 to 36 Vdc for dual display, ethernet, and isolated analog output from qualified safety approved source
Isolation
Power to Input/Output: 2300 Vac per 1 minute test
For Low Voltage Power Option: 1500 Vac per 1 minute test
Power to Relay/SSR Output: 2300 Vac per 1 minute test
Relay/SSR to Relay/SSR Output: 2300 Vac per 1 minute test
RS232/485 to Input/Output: 500 Vac per 1 minute test
Environmental Conditions:
All Models: 0 to 55°C (32 to 131°F) 90% RH non-condensing
Dual Display Models: 0 to 50°C (32 to 122°F), 90% RH non-condensing (for UL only)
Protection:
DPi/CNi/DPiS/CNiS32, 16, 16D, 8C: NEMA 4X/Type 4 (IP65) front bezel
DPi/CNi8, 8DH, 8DV: NEMA 1/Type 1 front bezel
Approvals: UL, C-UL, CE per EN61010- 1:2001
Dimensions
DPi/CNi8 Series: 48 H x 96 W x 127 mm D (1.89 x 3.78 x 5")
DPi/CNi16 Series: 48 H x 48 W x 127 mm D (1.89 x 1.89 x 5")
DPi/CNi32 Series: 25.4 H x 48 W x 127 mm D (1.0 x 1.89 x 5")
Panel Cutout
DPi/CNi8 Series: 45 H x 92 mm W (1.772 x 3.622"), 1.8 DIN
DPi/CNi16 Series: 45 mm (1.772") square, 1.16 DIN
DPi/CNi32 Series: 22.5 H x 45 mm W (0.886 x 1.772"), 1.32 DIN
Weight
DPi/CNi8 Series: 295 g (0.65 lb)
DPi/CNi16 Series: 159 g (0.35 lb)
DPi/CNi32 Series: 127 g (0.28 lb)
* No CE compliance above 60 Hz.
** Units can be powered safely with 24 Vac power, but no certification for CE/UL are claimed.
THERMOCOUPLE CHART
Universal Temperature / Process |
Input Type |
Range |
Accuracy |
Process Voltage |
0 to 100 mV, 0 to 1 V, 0 to 10 Vdc |
0.03% Rdg ±0.03% range |
Process Current |
0 to 20 mA (4 to 20 mA) |
0.03% Rdg ±0.03% range |
Excitation |
24 V @ 25 mA |
|
J |
Iron-Constantan |
-210 to 760°C / -346 to 1400°F |
0.4°C / 0.7°F |
K |
CHROMEGA™-ALOMEGA™ |
-270 to -160°C / -160 to 1372°C
-454 to -256°F / -256 to 2502°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
T |
Copper-Constantan |
-270 to -190°C / -190 to 400°C
-454 to -310°F / -310 to 752°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
E |
CHROMEGA™-Constantan |
-270 to -220°C / -220 to 1000°C
-454 to -364°F / -364 to 1832°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
R |
Pt/13%Rh-Pt |
-50 to 40°C / 40 to 1768°C
-58 to 104°F / 104 to 3214°F |
1.0°C / 0.5°C
1.8°F / 0.9°F |
S |
Pt/10%Rh-Pt |
-50 to 100°C / 100 to 1768°C
-58 to 212°F / 212 to 3214°F |
1.0°C / 0.5°C
1.8°F / 0.9°F |
B |
30%Rh-Pt/6%Rh-Pt |
100 to 640°C / 640 to 1820°C
212 to 1184°F / 1184 to 3308°F |
1.0°C / 0.5°C
1.8°F / 0.9°F |
C |
5%Re-W/26%Re-W |
0 to 2320°C / 32 to 4208°F |
0.4°C / 0.7°F |
N |
Nicrosil-Nisil |
-250 to -100°C / -100 to 1300°C
-418 to -148°F / -148 to 2372°F |
1.0°C / 0.4°C
1.8°F / 0.7°F |
L |
J DIN |
-200 to 900°C / -328 to 1652°F |
0.4°C / 0.7°F |
|
Pt, 0.00385, 100, 500, 1000 ohm |
-200 to 900°C / -328 to 1652°F |
0.4°C / 0.7°F |
RTD |
Pt, 0.00392, 100, 500, 1000 ohm |
-200 to 850°C / -328 to 1562°F |
0.4°C / 0.7°F |
|
|
|
|
|
|
† Price are shown in RMB.
Note: Refer to the Related Links for CNi32, CNi16 and CNi8 for complete specifications.
1. Ethernet options are not available for the CNi8A, CNi8C, CNi16, CNi16A or CNi32 controller.
2. "-DC", "-C24", and "-C4EIT" not available with excitation.
3. Analog output is not available with "-AL" units.
4. CNi8A0x-AL or CNi16A0x-AL contains 1 alarm and 1 analog retransmission.
5. "-SM" option not available on CNiS strain models.
Ordering Example: (1) CNi16D22-EIT 1/16 DIN dual display temp/process meter with two SSR outputs plus ethernet with embedded web server, ¥5,545.00, plus (1) CNi3233-C24-DC 1/32 DIN temp/process meter with two relay outputs plus RS-232 and RS-485 and 12 to 36 Vdc power supply, ¥5,015.00, ¥5,545.00 + 5,015.00 = $10,560.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Temperature/Process Controllers
|
| |
Select
CNi32 for Two control outputs 1/32 DIN
CNiS32 for 1/32 DIN Strain/Process Controller
CNi16 for Two control outputs 1/16 DIN
CNi16A for Two control outputs w/Isolated Analog Output for Retransmission
CNi16D for Two control outputs with dual display 1/16 DIN
CNiS16 for 1/16 DIN single display strain controller
CNi8 for Two control outputs 1/8 DIN
CNi8DH for Two control outputs with dual display 1/8 DIN horizontal
CNi8DV for Two control outputs with dual display 1/8 DIN vertical
CNi8A for Additional Isolated Recorder Analog Output. Select 2 Non-Analog Control Outputs
CNiS8 for 1/8 DIN Strain/Process controller
CNiS8DH for Strain/Process 1/8 DIN Dual Display Horizontal with 2 Control Output
CNiS8DV for Strain/Process 1/8 DIN Dual Display Vertical with 2 Control Outputs
CNI8C for Two control outputs 1/8 DIN compact design
|
(2)
|
Control Outputs #1
|
| |
Select
2 for Solid State Relay/ 0.5 A at 120/240 Vac continuous
3 for SPDT Relay
4 for Pulsed 10 Vdc at 20 mA
5 for Analog Output 0 to 20 mA/0 to 10 Vdc (Not Available for CNi8A model)
|
(3)
|
Control Outputs #2
|
| |
Select
2 for Solid State Relay/ 0.5 A at 120/240 Vac continuous
3 for Relay SPDT 3A at 120/3 A at 240 Vac
4 for Pulsed Driver 10 Vdc at 20 mA /for use with external SSR
|
(4)
|
Network Options
|
| |
Select
Nothing(leave field blank) for No Network Options
-C24 for Isolated RS232 and RS485 300 to 19.2 k baud
-EIT for Ethernet with Embedded Internet (not available on 1/32 DIN Controller)
-C4EIT for Ethernet with Embedded Web Server + Isolated RS485/422 hub for up to 31 devices(not available on 1/32 DIN Controller)
|
(5)
|
Power Supply
|
| |
Select
Nothing(leave field blank) for Standard Power (90 to 240 Vac/dc @ 50 to 400 Hz)
-DC for Low Voltage Power (12 to 36 Vdc/24 Vac or dual display and isolated analog output is 20 to 36 Vdc/24Vac)
|
(6)
|
Limit Alarm Version(Simplified Menu -No PID Control)
|
| |
Select
Nothing(leave field blank) for PID control - no limit alarm(standard)
-AL for Limit Alarm Version
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
Related Links -
Manual, Software, Related Products
|
|
|
|
Product Manual
|
|
Download
CNI_SERIES_Manual
|
|
Download
i Series Controller Manual
|
|
Download
i Series Communications Manual
|
|
Download
Temperature & Process Limit Alarm
|
|
Download
Process/Strain Gauge Controller Manual
|
|
Download
i Series Temperature/Process Controller with Isolated Analog Output Board
|
|
Download
Temperature & Process -SM Version (Simplified Menu)
|
|
Download
-EIT/-C4EIT Option - Embedded Ethernet for iSeries Monitor/Controller
|
|
Download
i Series Controller Quick Start Manual
|
|
Download
i Series Controller Quick Start Manual
|
|
Download
Temperature/Process Controller with Isolated Analog Output Board - Quick Start
|
|
Download
-SM Version (Simplified Menu)
|
|
Download
DPIx-AL/CNIx-AL Quick Start Guide
|
|
Software
|
|
Download iSeries ActiveX Control
|
|
Download iSeries Configuration Software
|
|
Download iServer Software-Mail Notifier and Utilities
|
|
Related Products
|
 |
OEG_Software:
|
|
Omega Data Logging & Monitoring Software (OEG) w/ OPC UA/DA
|
|
|
|
|
|
|
|
|
|
 |
DPi32, DPi16, DPi8 Series:
|
|
i-Series 1/32, 1/16, 1/8 DIN Programmable Temperature/Process Meters with RS232 & RS485 Communications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
