1/8 DIN Vertical Ramp/Soak Temperature/Process Controllers |
| CN7600 Series |
|
 |
|
|
|
|
 |
| Input Types | Range |
|---|
| K Thermocouple | -200 to 1300°C (-328 to 2372°F) |
| J Thermocouple | -100 to 1200°C (-148 to 2192°F) |
| T Thermocouple | -200 to 400°C (-328 to 752°F) |
| E Thermocouple | 0 to 600°C (32 to 1112°F) |
| W Thermocouple | -200 to 1300°C (-328 to 2372°F) |
| R Thermocouple | 0 to 1700°C (32 to 3092°F) |
| S Thermocouple | 0 to 1700°C (32 to 3092°F) |
| B Thermocouple | 100 to 1800°C (212 to 3272°F) |
| L Thermocouple | -200 to 850°C (-328 to 1562°F) |
| U Thermocouple | -200 to 500°C (-328 to 932°F) |
| Pt 100 RTD | -200 to 600°C (-328 to 1112°F) |
| 0 to 50 mV | -999 to 9999 |
| 0 to 5V | -999 to 9999 |
| 0 to 10V | -999 to 9999 |
| 0 to 20 mA* | -999 to 9999 |
| 4 to 20 mA* | -999 to 9999 |
| *Requires external 250Ω precision shunt resistor, OMX-R250 (sold separately). |

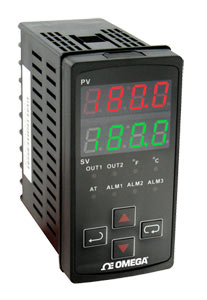

The CN7600 Series 1/8 DIN
temperature/process controllers
offer versatility and reliability for
temperature and process monitoring
applications. Designed as a vertical
mount 1/8 DIN controller, the CN7600
features dual outputs, universal
input, and up to three additional
alarm outputs. The second output
can be configured as a third alarm
output. Select the alarm type from
13 different preprogrammed alarm
functions. Control methods include
ON/OFF, PID, auto-tune or manual
tune. PID control is supported
with 64 ramp/soak control actions.
RS-485 communication is standard
on the CN7600 with up to 247
available addresses.
SPECIFICATIONS
Inputs: Thermocouple, RTD, DC voltages or DC current
Display: Two 4-digit, 7-segment 9.53 mm (0.38") H LEDs
PV: Red
SV: Green
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPST, 5 A @ 250 Vac resistive
Voltage Pulse: 14V, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Linear Voltage: 0 to 5V, 0 to 10V
Communication: RS-485 MODBUS® communication protocol
Panel Cut-Out: 92 x 46 mm (3.60 x 1.8")
Maximum Panel Thickness: 9.50 mm (0.375")
Panel Depth: 79.2 mm (3.125")
Weight: 425 g (15 oz)
Front Panel Rating: IP66
Panel Punches are available for this product here.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes with operator’s manual.
* Free CN7-A software download
Ordering Example: (1) CN7623 Dual output controller, DC pulse, mechanical relay output, RS-485 communications, ¥1,625.00
|
|
|
|
|
| |
|
