1/4 DIN Ramp/Soak Temperature/Process Controllers
CN7200 Series
1 year warranty CE

1/4 DIN Ramp and Soak Temperature Controller

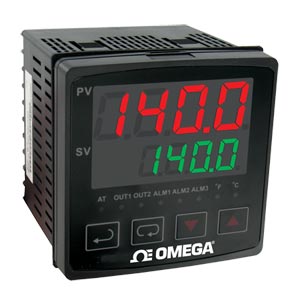

CN7200 Series:1/4 DIN Ramp/Soak Temperature/Process Controllers
Click for larger image.

• Dual 4-Digit LED Display
• 8 Ramp/Soak Programs, 8 Segments Each
• Universal Inputs
• Autotune
• Dual Control Outputs
• RS-485 Communications
• Free Software
• Alarm Functions

View related products - Controllers, Meters and Switching Devices

Click to scroll below to order See Specs PDF Manuals Software Related Items View a printer friendly page

The CN7200 Series ¼DIN temperature/process controllers are designed to accept thermocouple, RTD, current or voltage input and provide dual outputs for control. Available outputs include relay/relay, DC pulse/relay, current/relay, or linear voltage/relay. The units can be programmed for ON/OFF, PID, auto-tuning, or manual tuning control methods. The PID control is supported by 64 ramp/soak actions. The CN7200 Series also includes two additional alarm outputs. The second relay output can be reconfigured as a third alarm output. The alarm type can be selected from 13 different preprogrammed alarm functions. The controller features dual LED displays for local indication of process and setpoint values.

SPECIFICATIONS
Inputs: Thermocouple, RTD, DC voltages or DC current
Display: Two 4-digit, 7-segment
    PV: red, 19 mm (3.4") H
    SV: green, 12.7 mm (1.2") H
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPDT, 5 A @ 250 Vac resistive
Voltage Pulse: 14V, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Linear Voltage: 0 to 10V
Communication: RS-485 MODBUSR A-5-11/RTU communication protocol
Panel Cutout: ¼DIN, 92 mm square (3.622" square)
Dimensions: 96 x 96 x 15.8 mm bezel (3.78 x 3.78 x 0.625")
Panel Depth: 79.2 mm (3.125")
Weight: 425 g (15 oz)
Front Panel Rating: IP66
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 CN7223 Consult Sales   ¥2,360.00    Dual output, DC Pulse/relay with RS-485*
 CN7233 31 Weeks   ¥2,235.00    Dual output, relay/relay with RS-485*
 CN7253 2 Weeks   ¥2,235.00    Dual output, 4 to 20 mA/relay with RS-485*
 CN7263 2 Weeks   ¥2,360.00    Dual output, 0 to 5, 0 to 10 Vdc/relay with RS-485*
 Accessories
 CNQUENCHARC 2 Weeks   ¥465.00    Noise Suppression RC snubber (2 leads), 110 to 230 Vac
 OMX-R250 2 Weeks   ¥35.00    250Ω precision resistor
 CN7-485-USB-1    Consult sales   RS-485 to USB Mini-Node Converter
† Price are shown in RMB.

 Note: Comes with operator’s manual.
  Ordering Example: (1) CN7223 Dual output controller, DC pulse, mechanical relay output, RS-485 communications, ¥2,360.00

 Related Links - Manual, Related Products
 Product Manual
   Download  CN7200/CN7500/CN7600/CN7800 - Controller Instruction Sheet
   Download  CN7200, CN7500, CN7600, CN7800 Series - Manual
 Related Products
CP, DPP, RHS,RHP,RS Series CP, DPP, RHS,RHP,RS Series:
Panel Punches and Hole Saws for Thermocouple Connectors, DIN Size Controllers and Panel Meters
