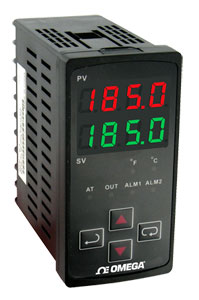

The CN710 Series temperature
controllers offer easy-to-use
programming menus designed for
quick installation. These units are
designed for direct or reverse acting
(cooling or heating) control. The
CN710 Series can be programmed
for simple ON/OFF or more complex
PID control functions. PID control is
supported with manual or autotuning.
Select relay, DC pulse, or
current output control methods.
The controller also includes two
additional alarm outputs. The alarm
outputs can be configured from
12 different preprogrammed
settings. The temperature controller
accepts a variety of thermocouple
and RTD inputs. The process value
and setpoint value are displayed
simultaneously on the large dual
LED. Auto-tuning, engineering units
(°F or °C) and alarm status is also
indicated on the faceplate.
SPECIFICATIONS Inputs: Thermocouple and RTD (see chart) Display: Two 4-digit, 7-segment 9.53 mm (0.38") H LEDs PV: Red SV: Green Accuracy: ±0.25% span, ±1 least significant digit Resolution: 1 degree Supply Voltage: 100 to 240 Vac, 50/60 Hz Power Consumption: 5 VA max Operating Temperature: 0 to 50°C (32 to 122°F) Memory Backup: Nonvolatile memory Control Output Ratings: Relay: SPDT, 5 A @ 250 Vac resistive Voltage Pulse: 14V, 10 to -20% (max 40 mA) Current: 4 to 20 mA Communication: RS-485 MODBUS® communication protocol Weight: 425 g (15 oz) Panel Cut-Out: 92 x 46 mm (3.60 x 1.8") Maximum Panel Thickness: 9.50 mm (0.375") Panel Depth: 79.2 mm (3.125") Front Panel Rating: IP66
† Price are shown in RMB.
Note: Comes with operator's manual. * Free CN7-A software download Ordering Example: (1) CN713 Single output controller, mechanical relay, RS-485 communications, ¥1,340.00
