High Temperature Dry Block Calibrator

CL1201
3 year warranty CE

High Temperature Dry Block Calibrator

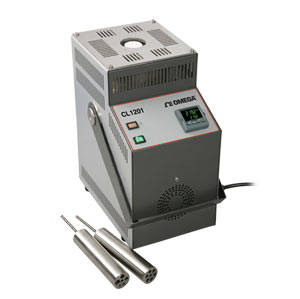

CL1201:High Temperature Dry Block Calibrator
Click for larger image.

Wide Temperature Range 400 to 1200ºC (752 to 2192ºF)
Simple to Use
Highly Accurate Entire Range and Excellent Stabilties
Calibrates Thermocouples and RTD’s
Multi-Hole Insert Block
Interchangeable Test Wells
Rapid Heating/ Cooling Rates
Rugged Case with Carry Handle
RS232 Communications Standard
Free Software
NIST Certificate Included

View related products - Precision Calibration Equipment and Ice Point References

Click to scroll below to order See Specs PDF Manuals View a printer friendly page

The CL1201 is designed to provide very accurate and repeatable thermal calibration between 400°C and 1200°C for a wide variety of thermocouples and other temperature sensors in industries such as glass manufacture, power generation, automotive and material processing. This rugged, economically priced portable thermocouple dry block calibrator is supplied with a NIST traceable certificate. The unit provides excellent stabilities to within ±0.1°C and has display accuracy of better than ±3°C between 400 and 1200°C.

The CL1201 block calibrator utilizes a special heater design for optimum temperature uniformity and rapid heating rates. The heating system consists of heater elements embedded in lightweight vacuum formed ceramic fiber moldings which allows faster heating rates and extends the working life above other ceramic tube designs which have heater elements wrapped around a ceramic tube. An isothermal block assembly is machined from a special alloy giving excellent thermal conductivity and also resists high temperature oxidation.

This block is designed to optimize performance between sufficient mass for good stability and uniformity and to have a low enough mass to have rapid heating/cooling rates and short stabilization periods. RS232 communications is standard.

SPECIFICATIONS
Minimum Temperature: 400°C (752°F)
Maximum Temperature: 1200°C (2192°F)
Display Accuracy: ±3°C (±6°F)
Temperature Uniformity: ±0.2°C (±0.4°F)
Temperature Stability: ±0.2°C (±0.4°F) at 1200°C (2192°F) after 20 mins
Display Resolution: 0.1° to 999.9 then 1° to 1200°C
Selectable: °C or °F
Heating Rate: 100 to 1200°C, 20 min
Cooling rate: 1200 to 200°C, 140 min
Fan Cooling: Automatic
Power: 120 Vac, 50/60 Hz 230 Vac, 50/60 Hz, 1600 W
Large Insert Size: 34 D x 155 mm Deep (1.33 x 6.10")
Dimensions: 350 H x 198 W x 279 mm D (13.8 x 7.8 x 11.0")
Weight: 10 kg (22 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

 Part Number   Availability   Price(RMB)   Description    Qty.
 Temperature Calibrators
 CL1201-230V    Consult sales   High temperature block calibrator, 230 Vac, no insert
 CL1200-HC    Consult sales   Replacement hard carrying case
 Inserts and Ceramic Block Insulators (Must Order as a Pair)
 CL1200IB-A    Consult sales   Insert, 4 x 8.0 mm
 CL1200CB-A    Consult sales   Ceramic block insulator for insert CL1200IB-A
 CL1200IB-B    Consult sales   Insert, 2 x 3 mm, 2 x 4 mm, 2 x 6 mm
 CL1200CB-B    Consult sales   Ceramic block insulator for insert CL1200IB-B
 CL1200IB-C    Consult sales   Insert, 1/8, 1/4, 3/16, 5/16, 3/8"
 CL1200CB-C    Consult sales   Ceramic block insulator for insert CL1200IB-C
 CL1200IB-D    Consult sales   Insert, 2 x 3/16, 2 x 1/4, 2 x 3/8"
 CL1200CB-D    Consult sales   Ceramic block insulator for insert CL1200IB-D
 CL1200IB-E    Consult sales   Insert, 6 x 1/4"
 CL1200CB-E    Consult sales   Ceramic block insulator for insert CL1200IB-E
Price are shown in RMB.

 Note: Comes complete with software, hard carrying case, and operator’s manual.
