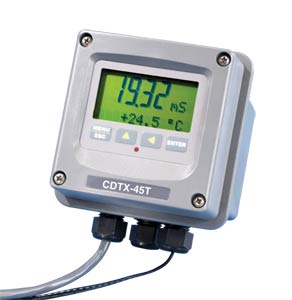

Toroidal Conductivity System |
| CDTX-45T |
|
 |
|
|
|
|
 |
The CDTX-45T toroidal conductivity system is designed for
online monitoring of chemically aggressive process solutions,
water applications that coat or foul traditional sensors, and
plating bath operations in which high current densities are
present. The sensor consists of 2 metallic ribbon coils that are
fixed in place by the sensor jacket material. The drive coil is
used to induce a current in the process solution. The second
sensing coil is used to measure the current in the process
solution; the magnitude of this current is proportional to the
conductivity of the process solution. Toroidal sensor is available in Noryl
to ensure that sensor-wetted materials are chemically resistant to process
chemicals. The sensor material is non-conductive, thereby
isolating the sensor from electrical noise and ground loops that
can influence the integrity of the measurement. This material
also makes the sensor resistant to electrode coating, since
most substances do not adhere to the sensor material.
Sensor can be submersion mounted for easy installation in
open tanks or pipe mounted in the optional 2" tee fitting, which
is keyed to the sensor for proper alignment. Tee fitting material
is polypropylene. For larger pipe diameters,
the sensor can be insertion mounted through a 1 1/2 NPT ball
valve for easy retraction.
MONITOR PERFORMANCE SPECIFICATIONS
Measuring Range:
Main Input: 0 µS to 2000 mS, mg/L total dissolved solids; loop current 4 to 20 mA
Sensor Temperature: -10 to 210ºC (14 to 410ºF)
Main Parameter Ranges: 0 to 2000 µS, 0 to 2 mS, 0 to 20 mS, 0 to 200 mS,
0 to 2000 mS, 0 to 2 S
Repeatability: 0.3% of span or 0.1 µS, whichever is greater
Sensitivity: 0.05% of span or 0.1 µS, whichever is greater
Non-Linearity: 0.3% of span or 0.1 µS, whichever is greater
Stability: 0.1% of span per 24 hr
Temperature Drift: Span or zero, 0.03% of span/ºC
Warm-Up Time: 7 s to rated performance
Response Time: 6 s to 90% of step input at lowest setting Max Sensor-to-Analyzer Distance: 61 m (200')
SENSOR SPECIFICATIONS
Sensor: Toroidal electrode
Wetted Materials: Noryl
Sensor Cable: 6.1 m (20') standard, maximum length 61 m (200')
Response Time: 2 s to 90% FS
Temperature Range: 0 to 105°C (32 to 221°F)
Pressure Limit: 150 psig
Process Connection: 3/4 MNPT rear thread, optional 2" keyed tee fitting
Temperature Element: Pt1000 RTD
Minimum Conductivity: 500 µS
INSTRUMENT SPECIFICATIONS
Enclosure:
Materials: NEMA 4X (IP66) polycarbonate, stainless steel hardware,
weatherproof and corrosion resistant
Dimensions: 112 H x 112 W x 89 mm D (4.4 x 4.4 x 3.5")
Mounting Options: Wall, panel (115 x 115 mm) or pipe/handrail
Conduit Openings: 3 M16 openings; cord grips and conduit adaptors included
Weight:
Loop-Powered Transmitter: 0.45 kg (1 lb)
Other Configurations: 0.68 kg (1.5 lb)
Display: Large, high-contrast, super-twist (STN) LCD 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit alphanumeric second-line display, 7.6 mm (0.3") 5 x 7 dot matrix characters
Keypad: 4-key membrane type with tactile feedback, polycarbonate with UV coating, integral EMI/static shield and conductively coated window
Ambient Temperature:
Operating: -20 to 60ºC (-4 to 140ºF)
Storage: -30 to 70ºC (-22 to 158ºF)
Ambient Humidity: 0 to 95% RH, non-condensing
Designed for hazardous and non-hazardous areas
EMI/RFI Influence: Designed to EN 61326-1
Output Isolation: 600 V galvanic isolation
Filter: Adjustable, 0 to 9.9 minutes additional damping to 90% step input
Temperature Input: Selectable Pt1000 or Pt100 RTD with automatic compensation
Please download specification page for complete list of available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator's manual.
** For extended cable lengths in foot increments up to 61 m (200'), add "-*" to model number, add $3/ft to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
|
|
|
|
|
| |
|
