True Modularity with Norgren Quikclamp® Connections
•
Quick Release Bayonet Bowl
•
Lubricator Flow Sensor Provides a Nearly Constant Oil/Air Ratio Over a Wide Range of Air Flows
•
Push-to-Lock Adjusting Knob with Tamper Resistant Option
•
All Around (360°) Visibility of the Lubricator Sight-Feed Dome Simplifies Installation and Adjustment
•
Regulator Balanced Valve Minimizes Effect of Variation in the Inlet Pressure on the Outlet Pressure
The C70H series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

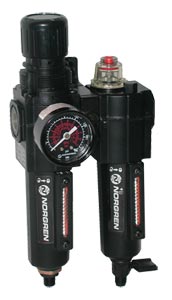

The C72H Series Air Line Air Filter/Regulator-Lubricator Combination Units
are designed for use as a single in-line unit or as part of Norgren's
Excelon® modular compressed air preparation supply
system. As a modular component, this filter/regulator-lubricator can quickly
be attached to smooth start / exhaust valves, safety
lockout valves and pipe adapters. With our Quickclamp® and
Quickclamp® and wall bracket accessories, a complete
compressed air supply system can be assembled and mounted
in minutes.
The C72H Filter/Regulator-Lubricator combination units come in
Micro-Fog models for pneumatic applications containing one
or more points of lubrication. Uses include lubrication of cylinders
and air driven devices like air line tools or pneumatic screwdrivers.
SPECIFICATIONS Fluid: Compressed air
Maximum Pressure: Transparent Bowl: 10 bar (150 psig)
Metal Bowl: Manual or Semiautomatic
Drain: 17 bar (250 psig)
Automatic Drain: 10 bar (150 psig)
O perating Temperature*: Transparent Bowl:
-20 to 50°C (0 to 125°F)
Metal Bowl: -20 to 65°C (0 to 150°F)
Particle Removal: 5, 25, or 40 µm
filter element
MATERIALS Body: Zinc
Bonnet: Acetal
Transparent Bowl: Polycarbonate
Guard for Transparent Bowl: Zinc
Metal: Zinc
Metal Bowl Liquid Level
Indicator Lens: Transparent nylon
Sight Feed Dome: Transparent nylon
Element: Sintered polypropelene
Elastomers: Neoprene and nitrile
* Air supply must be dry enough to avoid ice
formation at temperatures below 2°C (35°)F.
† Price are shown in RMB.
Note: Models include PTF threads. Filter/regulator has a knob adjustment, automatic drain, transparent bowl with guard, 40 ƒÊm element,relieving diaphragm and 10 bar (150 psig) regulating spring and gage. Lubricator is a micro-fog model with 1/4 turn manual drain and transparent bowl with guard.
Keywords:Compressed air, air filter, air regulators, air filter/regulators, air lubricators, air pressure regulators, compressed air combination units, Coalescing and oil absorbing filters Norgren Excelon
