True Modularity with Norgren Quikclamp® Connections
•
Compact Design
•
Filter Removes Liquids and Solid Particles Down to 5 µm
•
Push-to-Lock Adjusting Knob with Tamper Resistant Option
•
Micro-Fog Lubricator Provides Air Line Lubrication to One or More Air Driven Tools or Other Devices
•
Nearly Constant Oil Density Output with Varying Air Flow
•
Can be Disassembled Without the Use of Tools or Removal from Air Line
The C70A series has been discontinued. Please contact our Flow Engineering department.

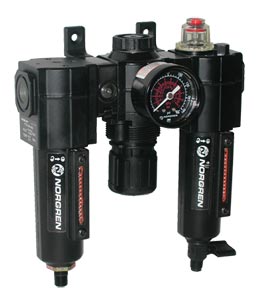

The C72A Series Air Line Air Filter-Regulator-Lubricator Combination Units
are designed for use as a single in-line unit or as part of Norgren's
Excelon® modular compressed air preparation supply
system. As a modular component, this filter-regulator-lubricator can quickly
be attached to smooth start / exhaust valves, safety
lockout valves and pipe adapters. With our Quickclamp® and
Quickclamp® and wall bracket accessories, a complete
compressed air supply system can be assembled and mounted
in minutes.
The C72A Filter-Regulator-Lubricator combination units come in
Micro-Fog models for pneumatic applications containing one
or more points of lubrication. Uses include lubrication of cylinders
and air driven devices like air line tools or pneumatic screwdrivers.
SPECIFICATIONS Fluid: Compressed air
Maximum Pressure: Transparent Bowl: 150 psig
(10 bar)
Metal Bowl: Manual or Semiautomatic Drain:
250 psig (17 bar)
Automatic Drain:150 psig (10 bar)
Operating Temperature*: Transparent Bowl: -20 to 50°C
(0 to 125°F)
Metal Bowl: -20 to 65°C (0 to 150°F)
Particle Removal: 5 or 40 µm filter
element
MATERIALS Body: Zinc
Bonnet: Acetal
Regulator Bottom Plug: Acetal
Transparent Bowl: Polycarbonate
Guard: Zinc
Metal: Zinc
Metal Bowl Liquid Level
Indicator Lens: Transparent nylon
Sight Feed Dome: Transparent nylon
Element: Sintered polypropylene
Elastomers: Neoprene and nitrile
* Air supply must be dry enough to avoid ice
formation at temperatures below 2°C (35°F).
† Price are shown in RMB.
Note: Models include PTF threads. Filter includes automatic drain, transparent bowl without guard and a 40 0 µm filter element. Lubricator is a micro-fog model with 1/4 turn manual drain and transparent bowl without guard.
