Bridge-Balancing and Zero Temperature-Compensation Resistors

RES-2C, RES-5C, RES-2N, RES-5N

Bridge-Balancing and Zero Temperature

Click for larger image.

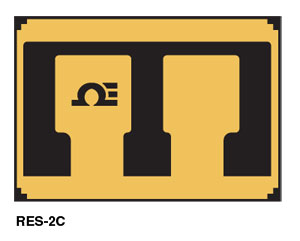

^¥ 1,420.00 RES-2C

•	FAST IMMEDIATE DELIVERY ON LARGE ORDERS! Stock to 1-Week!
•	Sold in Convenient Packs of 50
•	Rugged, High Reliability
•	Flexible, Small Bending Radius
•	Broad Temperature Range
•	Affix with Cold or Hot Cure Adhesives
View related products - Strain Gages, Accessories and Instrumentation

SPECIFICATIONS	RES-C	RES-N
Foil Measuring Grid	Constantan foil 5 microns thick	Nickel foil 5 microns thick
Carrier	Polyimide	Polyimide
Substrate Thickness	20 microns	20 microns
Tolerance in Ω	±1 Ω	±1 Ω
Temp Coefficient of Resistance	——	0.6%/°C (0.34%/°F)
Temperature Range	-75 to 200°C (-100 to 392°F)	0 to 100°C (32 to 212°F)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Price per Package of 5 Resistors

RES-2C	6 Weeks	¥1,420.00	2 ohm constantan foil resistor	qty.

RES-5C	2 Weeks	¥1,420.00	5 ohm constantan foil resistor	qty.

RES-2N	6 Weeks	¥1,420.00	2 ohm Nickel foil resistor	qty.

RES-5N	2 Weeks	¥1,420.00	5 ohm Nickel foil resistor	qty.

† Price are shown in RMB.

Note: Sold in packages of 5 resistors.
Ordering Example: (1) RES-2C Package of five 2 ohm Constantan foil resistors, ¥1,420.00

Keywords:Transducer-Quality Srain Gages Span temperature-compensation, bridge-balancing, and zero temperature-compensation resistors
