Push to Lock Adjusting Knob with Tamper Resistant Accessory
•
Optional Patented Quarter Turn Manual Drain

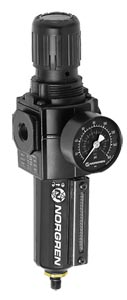

The B72G Series Air Line Filter / Pressure Regulators are
designed for use as a single in-line unit or as part of a Norgren's Excelon® modular compressed air preparation supply system.
This air line filter / regulator is designed for high efficiency water and
particle removal, and comes with a push to lock adjusting knob.
As a modular pneumatic component, this air line
filter / regulator can quickly be attached to oilers, smooth start / exhaust
valves, safety lockout valves and pipe adapters. With our
Quickclamp® and Quickclamp® and wall bracket
accessories, a complete compressed air supply system can
be assembled and mounted in minutes.
SPECIFICATIONS Fluid: Compressed air
Maximum Pressure: Transparent Bowl: 10 bar (150 psig)
Metal Bowl: 17 bar (250 psig)
B72G with Metal Bowl and
Auto Drain: 10 bar (150 psig)
Operating Temperature*: Transparent Bowl: -34 to 50°C
(-30 to 125°F)
Metal Bowl: -34 to 80°C
(-30 to 175°F)
