General Purpose Industrial Side Exit Accelerometer
ACC320

General Purpose Accelerometer

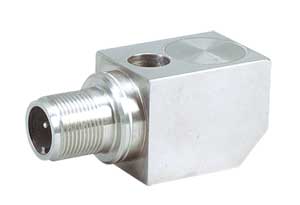

ACC320:General Purpose Industrial Side Exit Accelerometer
Click for larger image.

• 2-Pin MIL-Style Connector
• Splashproof Design
• Ground Isolated
• Hermetic Seal
• For Motors, Pumps, Gearboxes, and General Industrial Applications

View related products - Dynamic Measurement

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Sensitivity @ 100 Hz, ±10%: 100 mV/g
Frequency Range:
    ±5%  5Hz to 4kHz
±10%  4Hz to 7kHz
±3dB  2Hz to 12kHz
Turn-On Time: ≤0.5 s
Amplitude Range: ±70 g peak
Mounting Resonance: >18 kHz
Transverse Sensitivity: ≤5%
Amplitude Linearity: <1%
Noise (Typical):
    Broadband:
2.5Hz to 12kHz  350µg
Spectral:
10Hz  30µg/µHz
100Hz  8µg/µHz
1000Hz  3µg/µHz
Output Impedance: 100 Ω
Grounding: Isolated
Bias Voltage: 10 to 14 Vdc
Power Requirement: 24 to 30 Vdc
Current Regulating Diode: 2 to 6 mA cc
Temperature Range: -40 to 121°C (-40 to 250°F)
Base Strain Sensitivity, Max: 0.005 g/microstrain
Shock Limit: 5000 g peak

PHYSICAL
Weight: 154.5g (5.5oz)
Case Material: 304L SS
Design: Piezoelectric-ring shear
Sealing: Welded-hermetic
Mounting: ¼-28 stud (not included)
Mounting Torque: 2.8 N-m (25 in-lb)
Mating Connector: Amphenol 97-3106A-10SL-4S
Recommended Cabling: ACC-CB7-10
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 ACC320    Consult sales   General purpose accelerometer with side exit connector
 Accessories
 ACC-CB7-10 9 Weeks   ¥1,395.00    3.05 m (10') MIL/BNC twisted-pair shielded cable
 ACC-CB7-10WP 11 Weeks   ¥2,245.00    3.05 m (10') waterproof twisted-pair shielded cable
 ACC-PS2    Consult sales   3-range battery-powered signal conditioner
 ACC-PS3    Consult sales   AC-powered signal conditioner
 ACC-CB6 2 Weeks   ¥267.00    17.8 cm (7') BNCM/pigtail coaxial cable
† Price are shown in RMB.

 Ordering Example: (1) ACC-CB7-10 10 Foot cable, ¥1,395.00,
