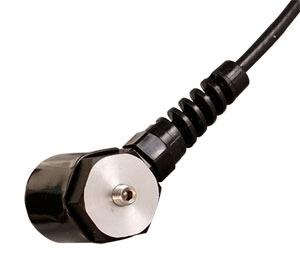

The ACC101 accelerometer is low cost yet extremely durable. These accelerometers are constructed using high strength aluminum, has a rugged strain relief, rugged ¼-28 stud mounting, an epoxy seal, and uses the kind of dependable components usually found only in higher priced accelerometers.
SPECIFICATIONS Excitation: 2 mA nominal @ 24 to 30 Vdc, constant current (18 volt supply can be used but will limit amplitude range) Rated Output: 100 mV/g nominal @ 100 Hz Frequency Range: 3 Hz to 5 kHz (up to ±10 % rated output shift) Amplitude Range: ±70 g peak with ACC-PS1 ±80 g peak with ACC-PS2, ACC-PS3 Amplitude Linearity: ±1% up to 65 g peak Temperature Range: -18 to 82°C (0 to 180°F) Temperature Sensitivity Effect:
-54 to 38°C (-65 to 100°F) ≤ 5% FS
38 to 121°C (100 to 250°F) ≤ 8% FS Thermal Shock: 1.2 g /°C Transverse Sensitivity: 5% of axial maximum Maximum g Without Damage: 5,000 g peak Maximum g Without Clipping: ±80 g peak Mounted Resonance Frequency: >18 kHz Output Impedance: 50 Ω nominal Bias Voltage: 10 V nominal Base Strain: 0.002 g/microstrain max. Noise Floor (wideband): 0.00025 g (rms) Weight: 50 grams (1.75 oz) nominal (without cable) Material: Aluminum, hard anodized thermal insulating boot included Dimensions: 3.81 H x 2.54 cm hex base (1.50 x 1.0") Connector: 2.5 m (10') integral coaxial cable with BNCM Mounting: 1/4-28 removable stud Mounting Torque max: 40 cm-kg (35 in-lb)
