OMEGA™ Thin Film DIN Class B Elements
5 Pack RTD Elements

OMEGA™ Thin Film DIN Class B Elements

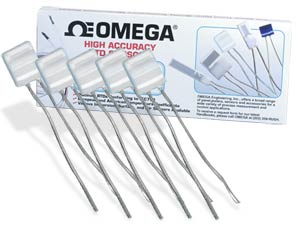

5 Pack RTD Elements:OMEGA™ Thin Film DIN Class B Elements
Click for larger image.

• DIN Class "B" Accuracy (for Less Critical Applications)
• Temperature Range: -70 to 500°C (- 94 to 932°F)
• Economical 5-packs
• Various Sizes Available
• Resistance Specifications Include 100, 500, and 1000 Ohms at 0°C
• European Curve: Alpha = 0.00385

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA thin film DIN Class "B" RTD elements have a resistance tolerance of 100.00 ±0.12, 500.00 ±0.60, or 1000.00 ±1.20 at 0°C, and they meet the requirements of IEC751. They are sold with 0.2 mm diameter by 10 mm long gold palladium leads. Series WS elements have a donut shape that provides for convenient surface attachment using a screw, rivet, or fastener. These elements can be used as is with controllers and instruments, or as part of a sensor assembly.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 5RTD-F3101 5 Weeks   ¥810.00    5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 10.0mm, 10mm long leads
 5RTD-F3141 5 Weeks   ¥770.00    5 Platinum Thin Film RTD Elements, 1000 Ohm, 2.0mm by 10.0mm, 10mm long leads
 5RTD-F3102 5 Weeks   ¥785.00    5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 4.0mm, 10mm long leads
 5RTD-F3142 5 Weeks   ¥785.00    5 Platinum Thin Film RTD Elements, 1000 Ohm, 4.0mm by 5.0mm, 10mm long leads
 5RTD-F3105 2 Weeks   ¥745.00    5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 2.0mm, 10mm long leads
 5RTD-F3145 2 Weeks   ¥765.00    5 Platinum Thin Film RTD Elements, 1000 Ohm, 2.0mm by 2.0mm, 10mm long leads
† Price are shown in RMB.

 Ordering Example: (1) 5RTD-F3105 Platinum RTD Thin Film Element, 100 ohm, Class B, 2.0mm X 2.0mm, 10mm long leads, ¥745.00
