Non-Reversible Temperature Labels |
| 21 Series |
|
 |
|
|
|
|
 |

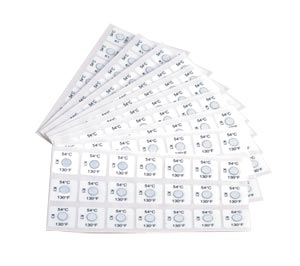

OMEGALABEL™ is a self-adhesive temperature monitor consisting of a heat-sensitive indicator sealed under a transparent heat-resistant window. The indicator circle turns from light gray to black at the temperature rating shown on the card. Color change is not reversible and provides a temperature history of the surface being monitored. To serve as a permanent record, the OMEGALABEL™ can be removed and attached to an inspection report.
OMEGALABEL™ accuracy is guaranteed to be within +/- 2% of temperature rating. The Series 21 OMEGALABEL™ is conveniently mounted on sheets (21 per sheet) for fast, on-the-spot application by just peeling them off one at a time. The adhesive backing easily adheres to any clean, dry surface.
Requirements Estimator
| Packs | Sheets | Labels | | 1 Pack | 10 | 210 | | 3 Packs | 30 | 630 | | 5 Packs | 50 | 1050 | | 10 Packs | 100 | 2100 | | 20 Packs | 200 | 4200 | | 30 Packs | 300 | 6300 | | 50 Packs | 500 | 10500 |
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) 21-100 Temperature Label, ¥1,130.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Temperature Range
|
| |
Select
100 for 100°F/38°C
110 for 110°F/43°C
120 for 120°F/49°C
130 for 130°F/54°C
140 for 140°F/60°C
150 for 150°F/66°C
160 for 160°F/71°C
170 for 170°F/77°C
180 for 180°F/82°C
190 for 190°F/88°C
200 for 200°F/93°C
210 for 210°F/99°C
220 for 220°F/104°C
230 for 230°F/110°C
240 for 240°F/116°C
250 for 250°F/121°C
260 for 260°F/127°C
270 for 270°F/132°C
280 for 280°F/138°C
290 for 290°F/143°C
300 for 300°F/149°C
325 for 325°F/163°C
350 for 350°F/177°C
375 for 375°F/191°C
400 for 400°F/204°C
500 for 500°F/260°C
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
| |
|
