Ceramic Wire Wound Platinum RTD Elements - Class A, Class 1/3B and Class 1/10B
1PT100KN and 2PT100KN

1PT100KN and 2PT100KN:Ceramic Wire Wound Platinum RTD Elements - Class A, Class 1/3B and Class 1/10B

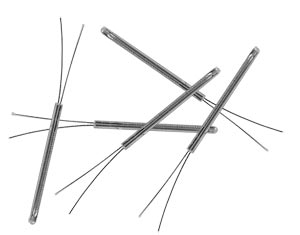

Click for larger image.

• Available in three tolerance classes:
  • Class A (IEC 60751 Class W0.15)

  • Class 1/3B (IEC 60751 Class W0.1)

  • Class 1/10B

    • Note: See applicable temperature range listed for each tolerance class below
    • Temperature Coefficient of Resistance (Alpha): 0.00385Ω/Ω/°C Nominal
    • Available in Single and Dual Element Styles in Some Sizes
    • Operating Temperature Range -196 to 600°C with Tolerances Assured Over the Specified Temperature Range for Each Class
    • Ceramic Body with Palladium-Gold Alloy Lead Wires
    • Suggested Operating Current: 1 milliamp max.

    View related products - RTD (PT100) Probes, Elements and Assemblies

    Click to scroll below to order See Specs PDF View a printer friendly page

    These "KN" Series wire wound platinum sensing elements are available in three tolerance classes:

    Class A, Temperature Range -100 to 450°C, Tolerance = ± 0.15+(.002 * t) °C
    Class 1/3B, Temperature Range -100 to 350°C, Tolerance = ± 0.10+(.0017 * t) °C
    Class 1/10B, Temperature Range 0 to 100°C, Tolerance = ± 1/10*( 0.30+(.005 * t)) °C
    with t = temperature in °C regardless of sign.

    Note: These elements are capable of being exposed to temperatures between -196 and 600°C, however the tolerances apply only within the temperature ranges shown for each class.

    These elements are made with wire wound platinum coils, ceramic housings and palladium-gold alloy lead wires. The small size of the sensor body allows for easy installation in protective tubes or custom housings. Applications include a variety of processes and equipment.
