*Insert calibration code in model number: J, K, T, E, R, S or U.

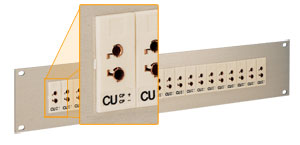

19" Jack Panels with Switch Cutout
No. of Rows
Panel Height
Switch Size
Max. No. of Jacks
1
133.3 mm (5.25")
76.2 mm (3")
15
2
133.3 mm (5.25")
76.2 mm (3")
30
2
177.8 mm (7")
127 mm (5")
30
3
177.8 mm(7")
127 mm (5")
45
4
222.25 mm(8 3/4")
127 mm (5")
60
19" Jack Panels with Switch and Meter Cutouts
No. of Rows
Panel Height
Switch Size
Max. No. of Jacks
1
133.35 mm (5.25")
76.2 mm (3")
10
2
133.35 mm (5.25")
76.2 mm (3")
20
2
177.8 mm(7")
127 mm (5")
20
3
222.25 mm(8 3/4")
127 mm (5")
30
4
177.8 mm(7")
127 mm (5")
40
† Price are shown in RMB.
Note: Note: When a switch is ordered with a panel, installation is included at no extra charge, add suffix “-MTG” to model number of switch or meter. Panels with switches and/or meters are not supplied wired. Wiring charge is $5 per circuit. Consult factory for details. Switches and Meter Sold Separately. A 1/8 DIN (45 x 92 mm) meter cutout is supplied unless otherwise specified. (OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$) Ordering Example: (1) 19UJP1-10-E 19, ¥920.00
Part Number Builder
Option Descriptions
(1)
Number of Rows
Select 1 for 1 row 2 for 2 rows 3 for 3 rows 4 for 4 rows
(2)
Total Number of Jacks
Select 10 for 10 jacks 20 for 20 jacks 28 for 28 jacks 30 for 30 jacks 40 for 40 jacks
(3)
Thermocouple Calibration
Select J for J type K for K type T for T type E for E type R/S for R or S type U for U type
(4)
Optional Switch Cutout
Select Nothing(leave field blank) for no switch cutout -OSW for switch cutout
(5)
Optional Meter Cutout
Select Nothing(leave field blank) for no meter cutout -MTR for meter cutout
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
